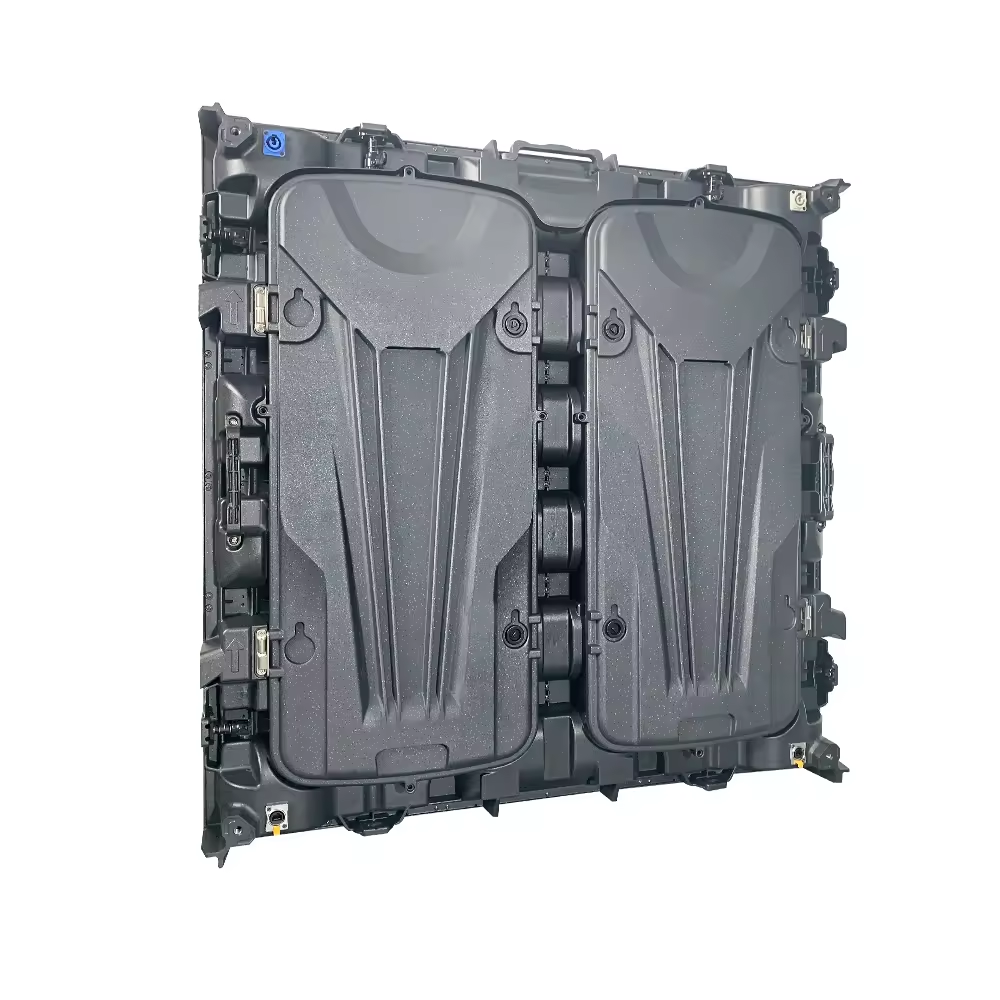

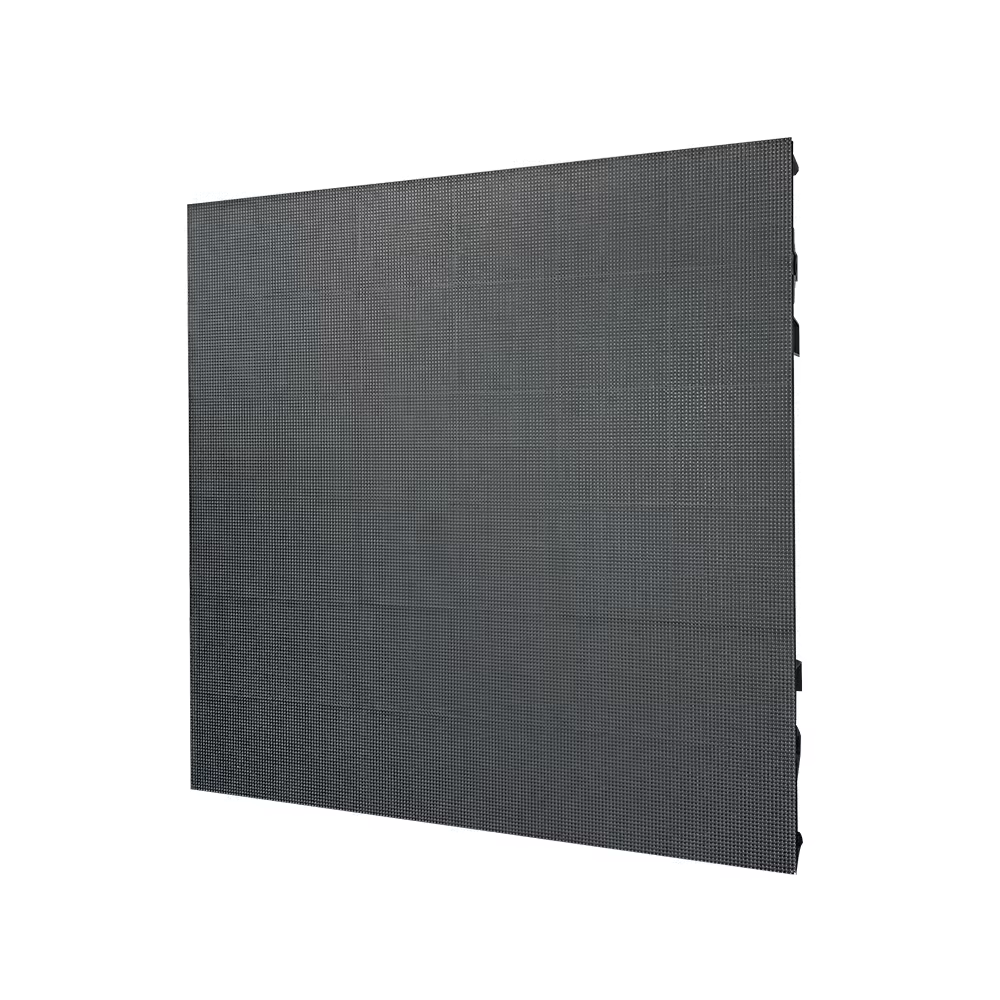

Product Introduction
The Outdoor Front Service P6 LED Display Screen is a high - quality outdoor display solution designed to meet the diverse needs of various outdoor applications. With a pixel pitch of 6mm, it offers clear and vivid image display. The front - service design makes it easy to maintain and repair, allowing technicians to quickly access the internal components from the front side, reducing maintenance time and effort.
Product Advantages
-
High - Quality Display
The P6 LED display screen provides excellent image clarity and brightness. It can deliver sharp and colorful visuals even under direct sunlight, ensuring that the content is clearly visible to viewers at a distance. The high - resolution display is perfect for showcasing detailed graphics, videos, and text.
-
Durability and Reliability
Built with robust materials and advanced waterproof and dustproof technology, this outdoor LED display screen can withstand harsh weather conditions such as rain, snow, and strong winds. It has a long - lasting lifespan, reducing the need for frequent replacements and lowering the overall cost of ownership.
-
Easy Installation and Maintenance
The front - service feature simplifies the installation process. Technicians can easily mount and configure the screen without the need for complex tools or equipment. Moreover, the convenient maintenance access from the front side allows for quick troubleshooting and component replacement, minimizing downtime.
-
Energy Efficiency
This LED display screen is designed to be energy - efficient, consuming less power compared to traditional outdoor display solutions. It helps reduce energy costs and is also environmentally friendly, making it a sustainable choice for long - term use.
Outdoor Front Maintenance LED Displays: Easy Servicing for Lasting Performance
Outdoor P6.67 front maintenance LED screen are a popular choice for various outdoor applications due to their convenient maintenance features and exceptional visual performance.
Easy Maintenance:

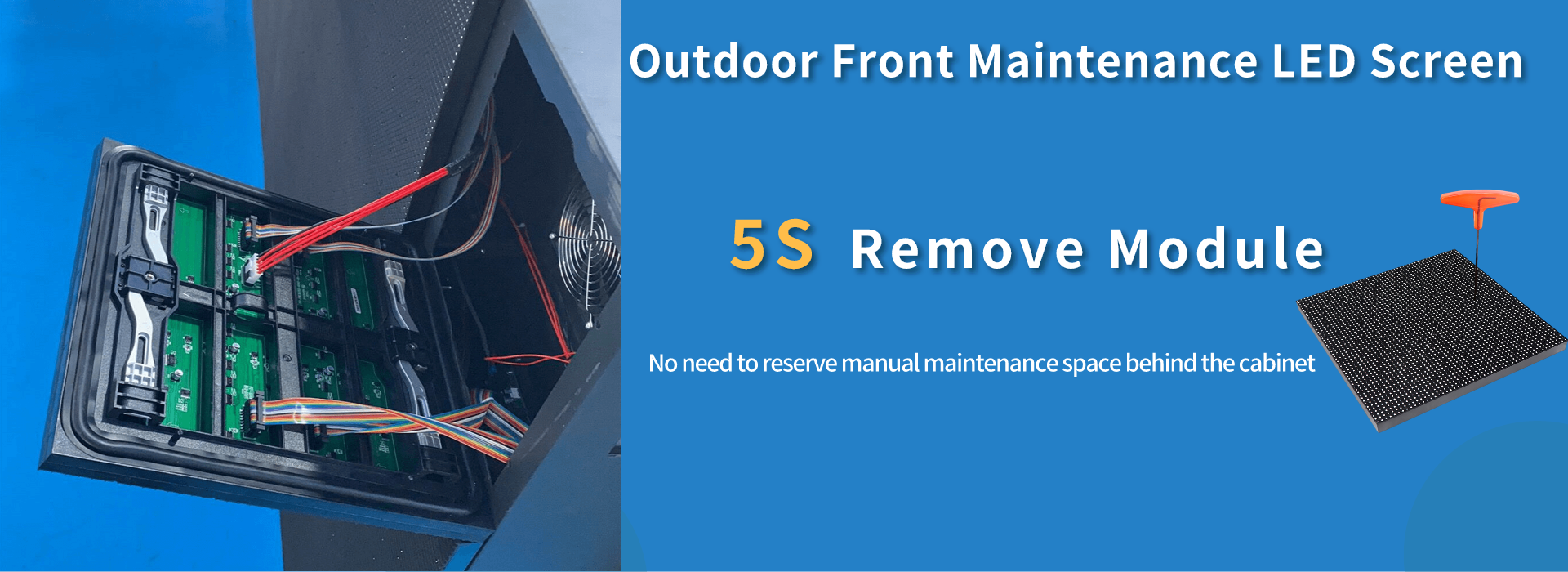

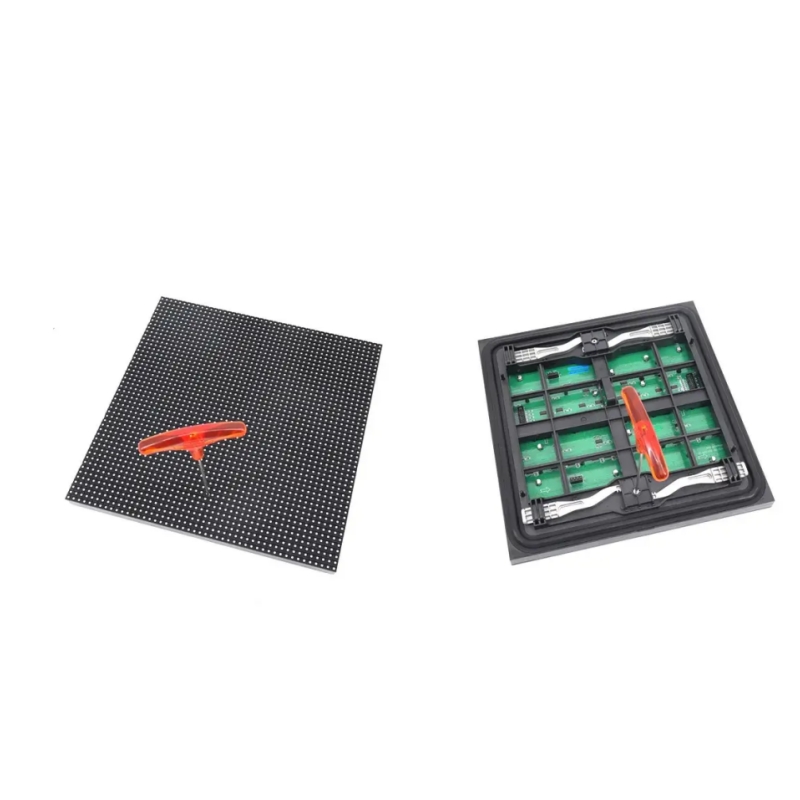

The front-maintenance design allows for easy access to the display modules from the front, simplifying repairs and replacements without needing to disassemble the entire display from the back. This is crucial for outdoor installations where weatherproofing is essential.
Durability:
Built to withstand harsh outdoor conditions like rain, dust, sunlight, and extreme temperatures.
High Brightness:
Ensures clear visibility even in bright sunlight, making them suitable for various outdoor applications.
Wide Viewing Angles:
Consistent image quality from different viewing positions, ensuring a wider audience can see the display clearly.
Versatility:
Adaptable to various applications like billboards, building facades, outdoor advertising displays, stadiums, and event venues.
| No | Items | Outdoor Front Maintenance LED Display Specification |
| 1 | Model | P4 | P5 | P6.67 | P8 | P10 |
| 2 | Pixel Pitch | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| 3 | Scan mode | 1/10 Scan | 1/8 Scan | 1/6 Scan | 1/5 Scan | 1/2 Scan |
| 4 | Pixel density | 62,500dots/㎡ | 40,000dots/㎡ | 22,477dots/㎡ | 15,625dots/㎡ | 10,000dots/㎡ |
| 5 | Pixel Component | 1R1G1B |
| 6 | Led lamp | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| 7 | Brightness | >5000cd/㎡ | >6000cd/m2； |
| 8 | Module size | 320*320mm(Front maintenance Lock System Model) |
| 9 | Cabinet Size | 960*960mm |
| 10 | Refresh Rate | >3840HZ |
| 11 | Power Consumption | AVG：500W/㎡，MAX：1000W/㎡ |
| 12 | Screen Weight | <28kg/㎡ |
| 13 | Protection grade | IP65 |
| 14 | Lifespan | >100,000 hours |
| 15 | Output Voltage | 5V power supply |
| 16 | Input Voltage | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system |
| 17 | Working Condition | -10℃～+65℃，10%～95%RH |
| 18 | Viewing distance | 4-250m |
| 19 | Viewing angle | H 140°, V 140° |
| 20 | Control System | NovaStar System, synchronize/asynchronous |
Application Scenarios
-
Advertising and Promotion
It is ideal for outdoor advertising campaigns. Businesses can use it to display eye - catching advertisements, promotions, and product information to attract potential customers passing by. Whether it's placed in a busy street, shopping mall entrance, or near a highway, it can effectively capture the attention of a large audience.
-
Public Information Display
In public places such as bus stops, train stations, and airports, this LED display screen can be used to show real - time information such as schedules, announcements, and weather updates. It helps keep the public informed and enhances the overall user experience.
-
Sports and Entertainment Venues
For sports stadiums and entertainment centers, the P6 LED display screen can display live scores, player statistics, and exciting highlights during events. It can also be used to show promotional content and sponsor advertisements, adding value to the event experience.
-
Corporate and Event Displays
Companies can use it for outdoor corporate events, product launches, and exhibitions. It can display company logos, product demonstrations, and event schedules, creating an impressive and professional visual presentation.
