Outdoor Common Cathode Energy Saving LED Display Screens: A Bright Idea for Eco-Conscious Visibility.
Outdoor common cathode energy saving LED display screens are a powerful tool for grabbing attention while simultaneously reducing your environmental footprint.
Reduced power consumption:
Up to 50% compared to traditional "common anode" LED displays, saving you money on electricity costs.
Lower heat generation:
Less heat means longer component life and improved reliability.
Higher brightness and color consistency: Enhanced visual performance.
Cost-effective:
Reduced energy consumption and potential for longer lifespan contribute to overall cost savings.
Eco-friendly:
Less energy usage makes them a greener choice for environmentally conscious businesses.
High-quality visuals:
Bright and vibrant colors with consistent picture quality, even in outdoor settings.
Durable:
Designed to withstand harsh weather conditions like rain, dust, and wind.
Item |
P4.44 |
P5.7 |
P6.67 |
P8 |
P10 |
|||||
Pixel Composition(SMD) |
1921 |
2727 |
2727 |
2727 |
2727 |
|||||
Pixel Pitch(mm) |
4.44 |
5.7 |
6.67 |
8 |
10 |
|||||
Module Resolution(W×H) |
108×72 |
84×56 |
72×48 |
60×40 |
48×32 |
|||||

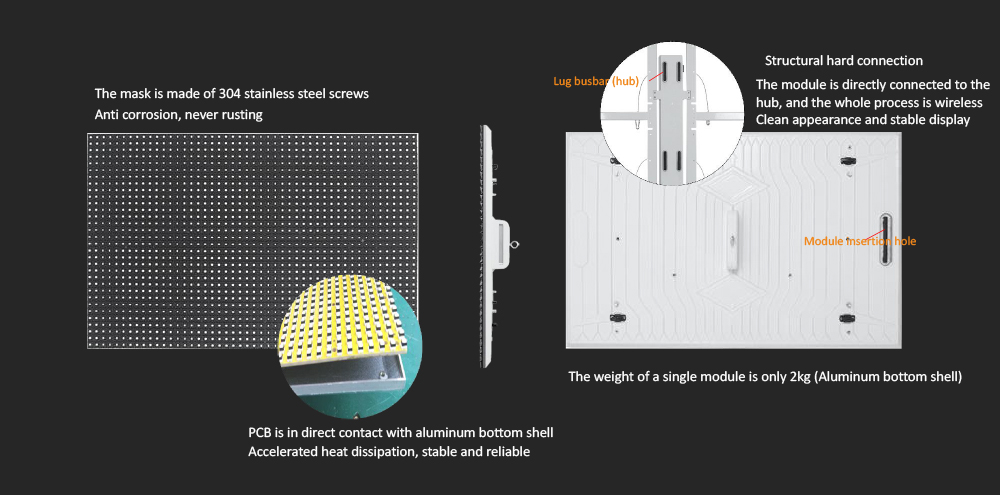

Module Size(mm) |
480×320×16 |
|||||||||
Module Weight(kg) |
2 |
|||||||||
Module Qty/Cabinet(W×H) |
2×3 |
|||||||||
Cabinet Resolution(W×H) |
216×216 |
168×168 |
144×144 |
120×120 |
96×96 |
|||||

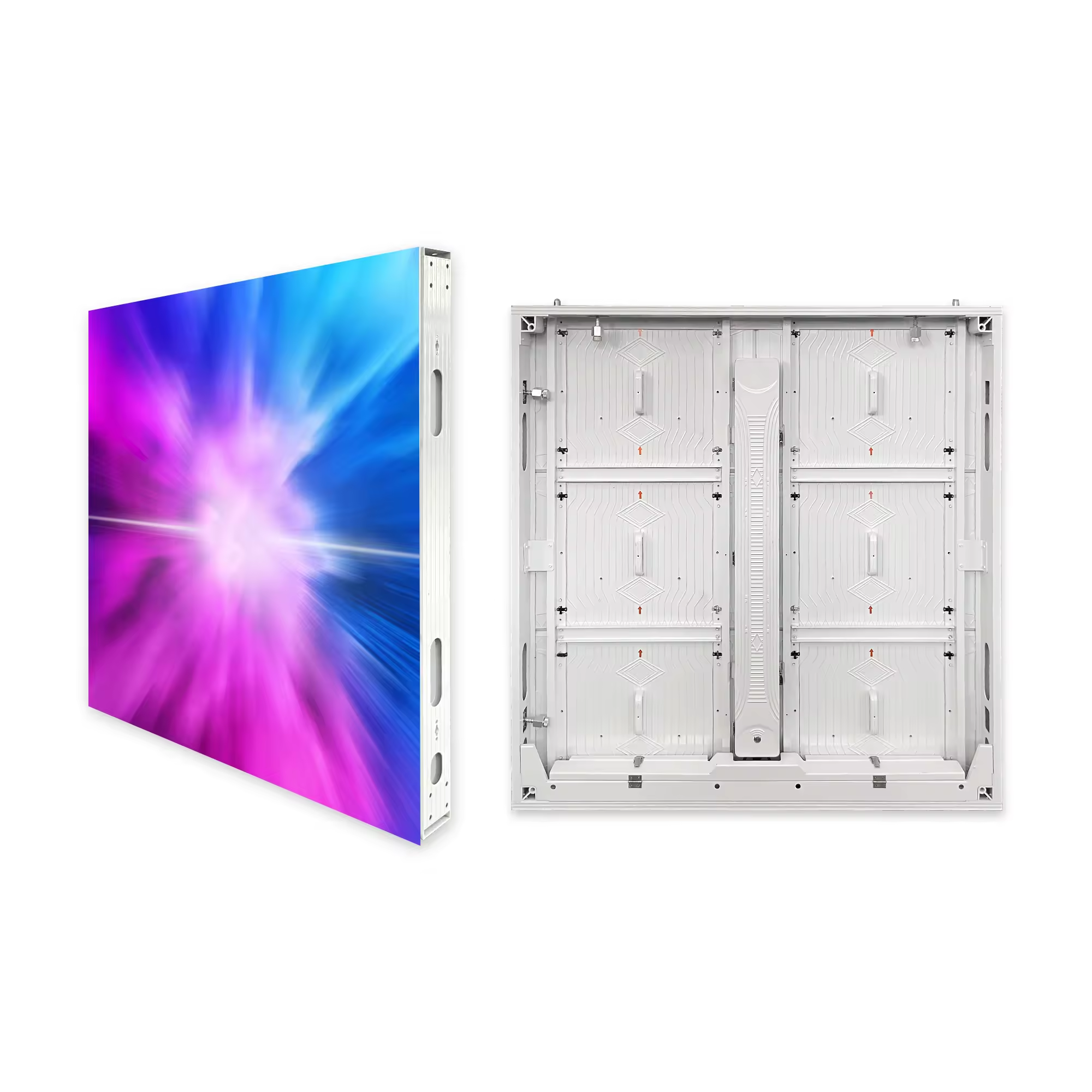

Cabinet Size(mm) |
960×960×87 |
|||||||||
Cabinet Area(㎡) |
0.92 |
|||||||||
Cabinet Weight(kg/cabinet) |
25 |
|||||||||
Cabinet Material |
Die-cast Aluminium |
|||||||||
Cabinet Density（dot/m²） |
50625 |
30625 |
22500 |
15625 |
10000 |
|||||
IP Rating |
IP66 |
|||||||||
White Balance Brightness(nits) |
≥5500 |
≥5500 |
≥5500 |
≥5500 |
≥6000 |
|||||
Color Processor(bit) |
16 |
|||||||||
Color Temperature(K) |
6500-9000 |
|||||||||
Visual Angle(H/V) |
140°/ 120° |
|||||||||
Luminous point centre deviation |
＜3% |
|||||||||
Luminance uniformity |
≥97% |
|||||||||
Chromaticity uniformity |
Within ±0.003Cx, Cy |
|||||||||
Contrast Ratio |
≥15000:1 |
|||||||||
The Max Power Consumption(W/㎡) |
700 |
700 |
700 |
700 |
800 |
|||||
Average Power Consumption(W/㎡) |
235 |
235 |
235 |
235 |
268 |
|||||
Input Voltage |
AC100~240V |
|||||||||
Frequency(Hz) |
50&60 |
|||||||||
IC Driving(s) |
1/9 |
1/7 |
1/6 |
1/5 |
1/2 |
|||||
Refreshing Ratio(Hz) |
3840 |
|||||||||
Maintenance Method |
Front and Rear |
|||||||||
Lifespan(hrs) |
100,000 |
|||||||||
Work Temperature/Humidity |
-10℃-50℃/10%RH-98%RH (Non Condensing) |
|||||||||
Storage Temperature/Humidity |
-20℃-60℃/10%RH-98%RH (Non Condensing) |
|||||||||
