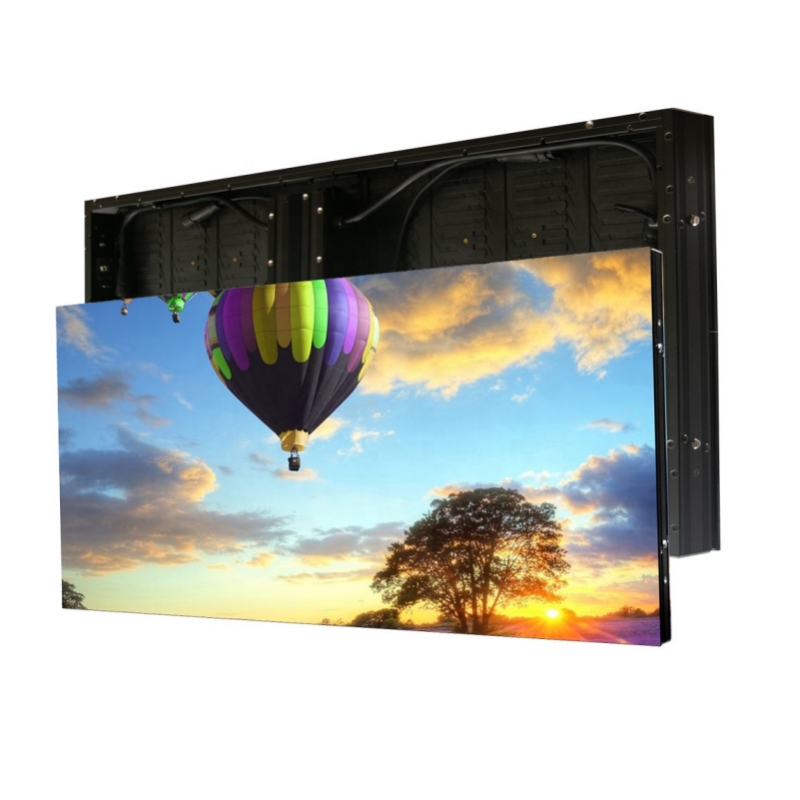

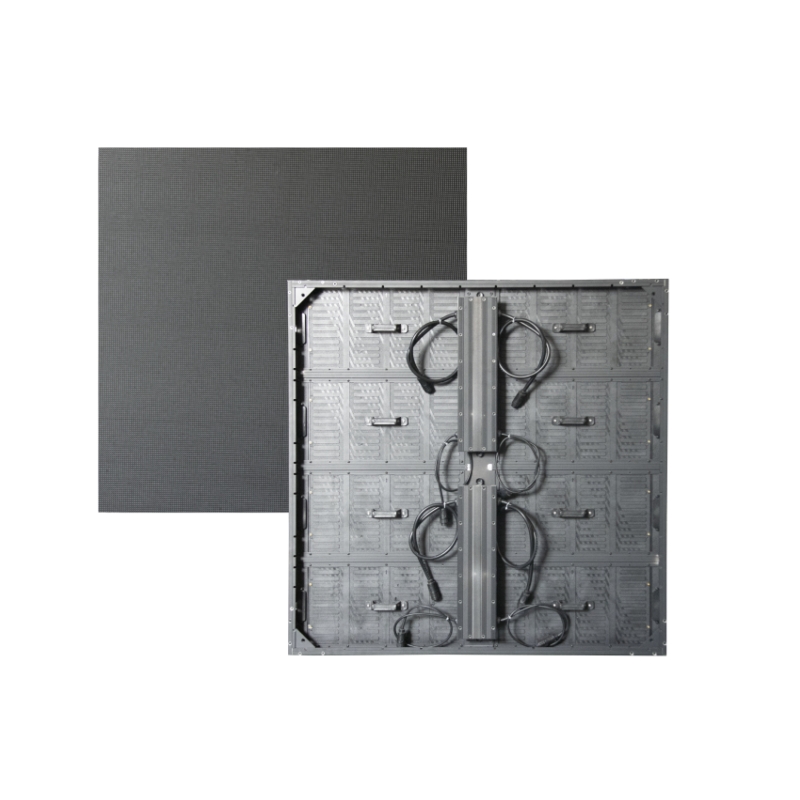

Outdoor Aluminum Profile Fixed LED Display is featuring slim and lightweight aluminum profile system frame, it offers the best balance between weight and durability to withstand harsh environmental factors such as direct UV rays, varying temperatures, constant vibrations, and severe weather conditions. A reliable choice for DOOH which provides exceptional and vivid image quality with high brightness, high refresh rate and high contrast under any light condition.
Durability:
Aluminum is a strong and weather-resistant material that can withstand the harshest conditions. This makes it an ideal material for outdoor LED displays.
Lightweight:
Aluminum is also a lightweight material, which makes it easy to install and transport LED displays. Our Aluminum Profile Cabinet weighs only 15kg per sqm.
Versatility:
Outdoor aluminum profile fixed LED displays can be used in a variety of applications, such as advertising, public information, and entertainment.
High brightness:
LED displays are very bright, even in direct sunlight. This makes them easy to see from long distances.
Energy efficiency:
LED displays are more energy-efficient than traditional incandescent displays.
| No | Items | Parameter on Outdoor Profile LED Screen | |||||||||||||
| 1 | Model | WH-3.91 | WH-4.81 | WH-5.2 | WH-6.25 | WH-10.4 | |||||||||
| 2 | Pixel Pitch | 3.91*3.91mm | 4.81*4.81mm | 5.2*5.2mm | 6.25*6.25mm | 10.4*10.4mm | |||||||||
| 3 | Scan mode | 1/16 Scan | 1/13 Scan | 1/8 Scan | 1/5 Scan | 1/2 Scan | |||||||||
| 4 | Pixel density | 65,536dots/㎡ | 43,264dots/㎡ | 36,864dots/㎡ | 25,600dots/㎡ | 9,216dots/㎡ | |||||||||
| 5 | Pixel Component | 1R1G1B | |||||||||||||
| 6 | Led lamp | SMD1921 | SMD2727 | SMD3535 | |||||||||||
| 7 | Brightness | >4000cd/㎡ | >5000cd/㎡ | ||||||||||||

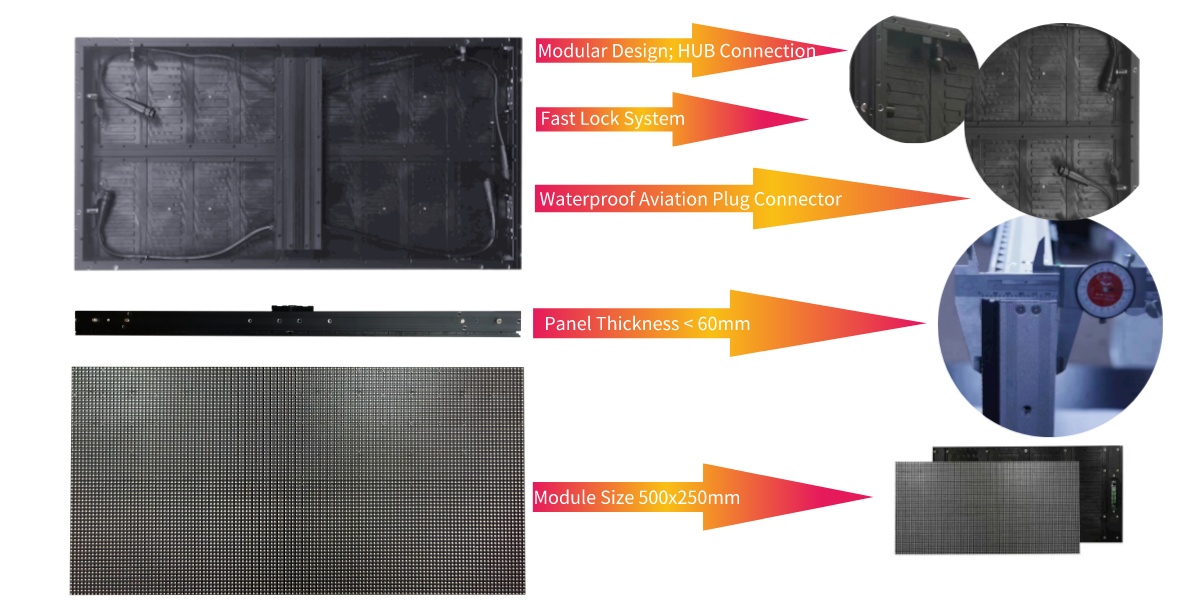

| 8 | Module size | 500*250mm | |||||||||||||
| 9 | Cabinet Size | 1000*500/1000*1000mm | |||||||||||||
| 10 | Refresh Rate | >1920HZ | |||||||||||||
| 11 | Power Consumption | AVG：230W/㎡，MAX：800W/㎡ | |||||||||||||
| 12 | Screen Weight | <22kg/㎡ | |||||||||||||

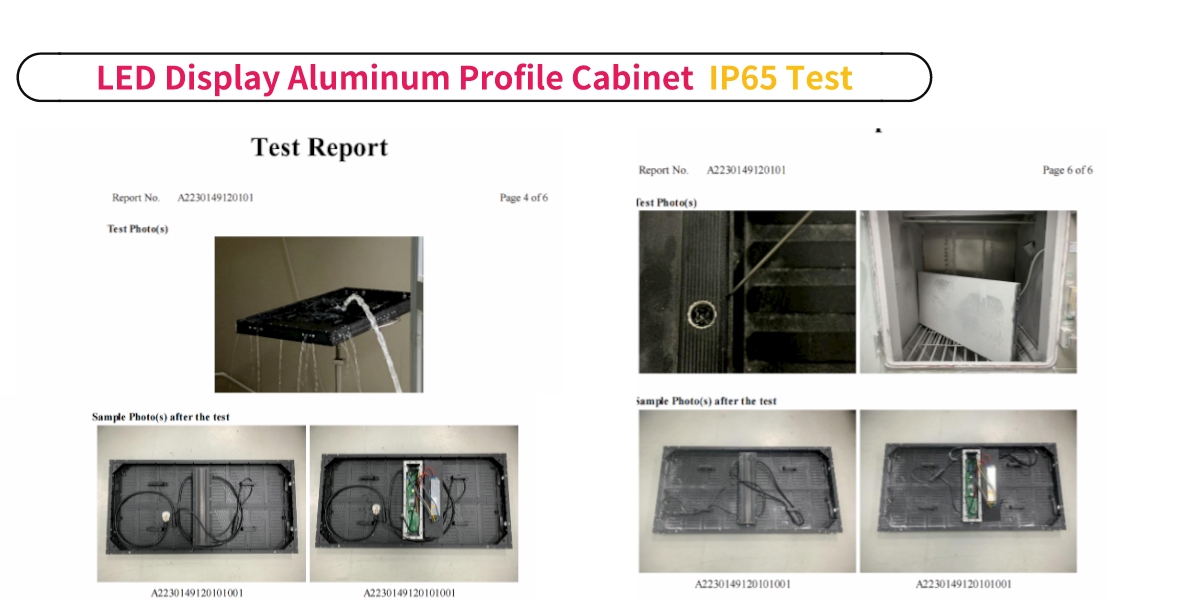

| 13 | Protection grade | IP65+ | |||||||||||||
| 14 | Flatness | Seam between modules is <0.1mm | |||||||||||||
| 15 | Lifespan | >100,000 hours | |||||||||||||
| 16 | Input Votage | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | |||||||||||||
| 17 | Working Condition | -10℃～+65℃，10%～95%RH | |||||||||||||
| 18 | Viewing distance | 4-250m | |||||||||||||
| 19 | Viewing angle | H 140°, V 140° | |||||||||||||
| 20 | Control System | NovaStar System, synchronize/asynchronous | |||||||||||||
Outdoor advertising:
Showcase products, brands, and promotions with stunning visuals that reach a wide audience.
Public spaces and transportation hubs:
Provide information and entertainment to travelers, commuters, and pedestrians.
Sporting events and stadiums:
Enhance the fan experience with live scores, replays, and engaging content.
Concerts and festivals:
Create immersive and dynamic backdrops for performances and events.
Architectural and building facades:
Integrate seamlessly with building designs for dynamic and eye-catching displays.
