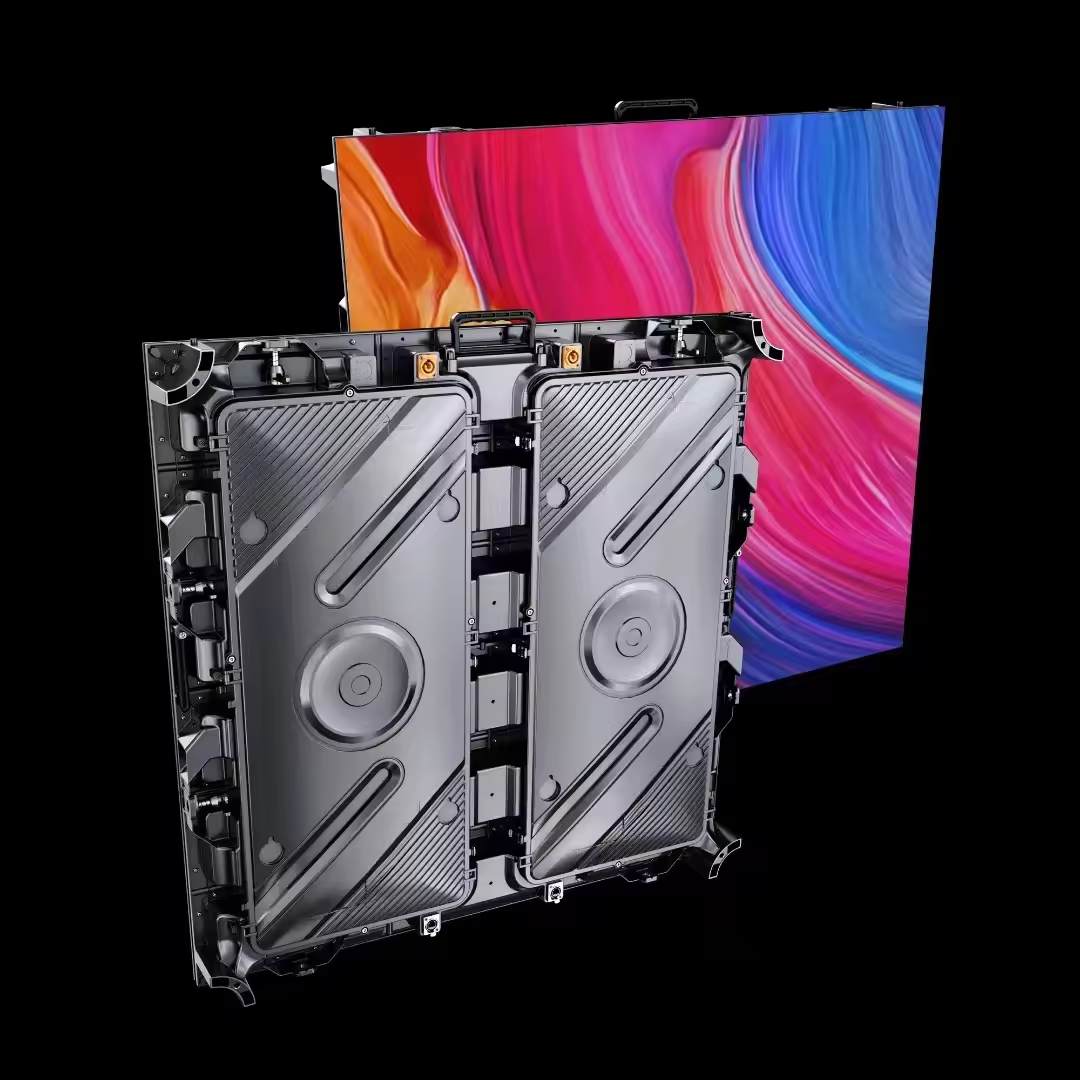

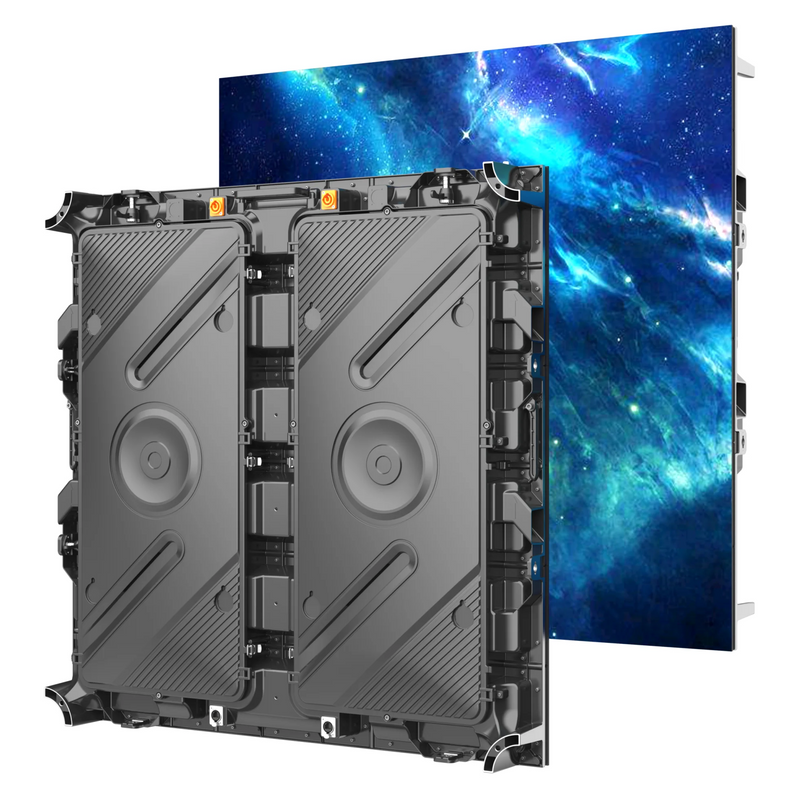

An outdoor front maintenance LED screen is a specialized type of LED display designed for withstanding harsh outdoor environments while offering easy serviceability.
Outdoor Suitability:
Weatherproof design protects the display from rain, dust, sun, and extreme temperatures.

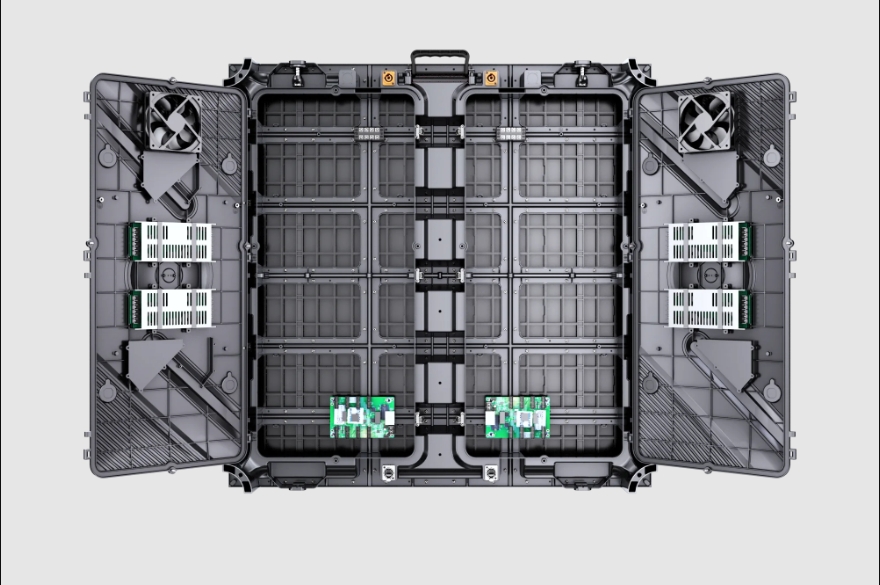

Front Maintenance:
Modules can be accessed and serviced from the front of the display without the need for rear or top access. This simplifies maintenance and minimizes disruption in high-traffic outdoor areas.
High Brightness:
Ensures clear visibility even in direct sunlight, making your advertisements or messages stand out.
Large Size:
Ideal for capturing attention in outdoor environments.
| No | Items | Outdoor Front Maintenance LED Display Specification | ||||
| 1 | Model | P4 | P5 | P6.67 | P8 | P10 |
| 2 | Pixel Pitch | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| 3 | Scan mode | 1/10 Scan | 1/8 Scan | 1/6 Scan | 1/5 Scan | 1/2 Scan |
| 4 | Pixel density | 62,500dots/㎡ | 40,000dots/㎡ | 22,477dots/㎡ | 15,625dots/㎡ | 10,000dots/㎡ |
| 5 | Pixel Component | 1R1G1B | ||||
| 6 | Led lamp | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| 7 | Brightness | >5000cd/㎡ | >6000cd/m2； | |||

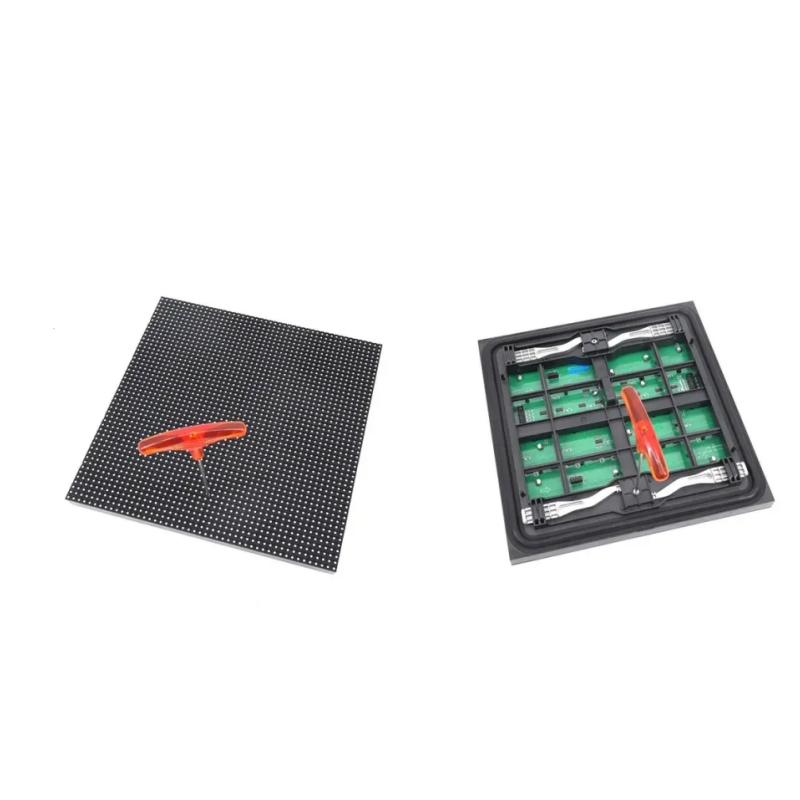

| 8 | Module size | 320*320mm(Front maintenance Lock System Model) | ||||

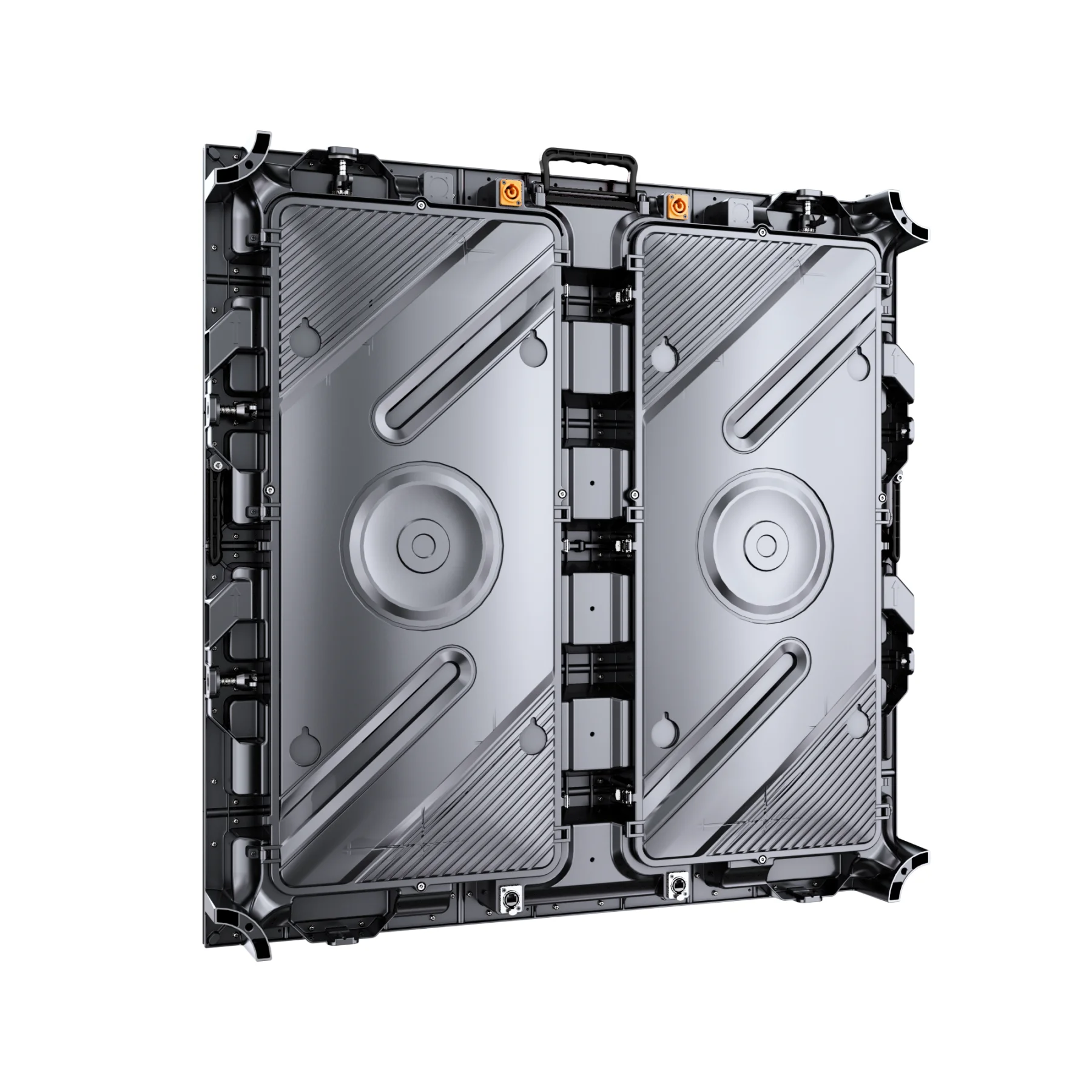

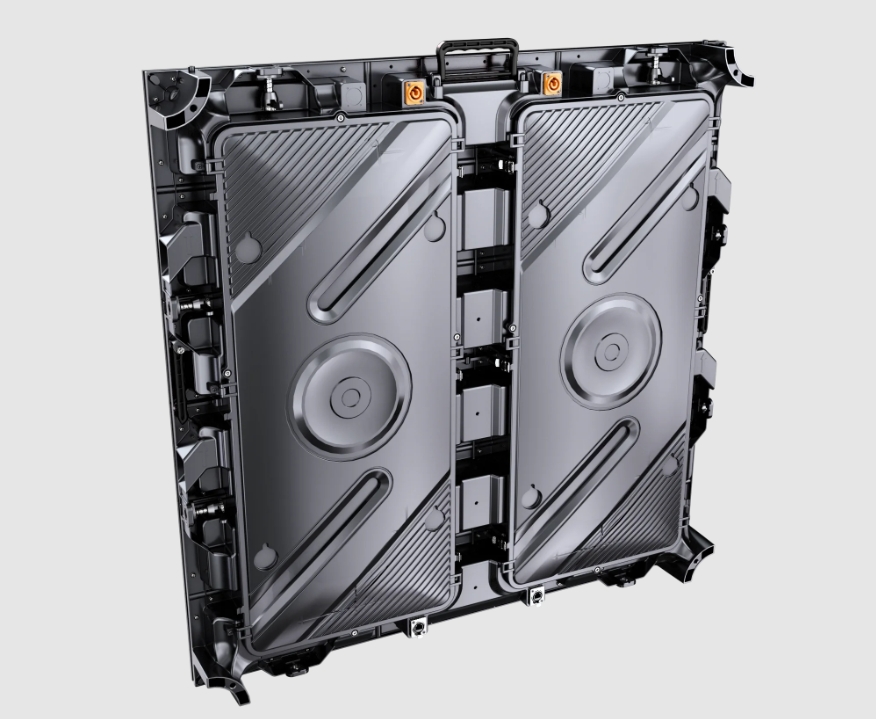

| 9 | Cabinet Size | 960*960mm | ||||
| 10 | Refresh Rate | >3840HZ | ||||
| 11 | Power Consumption | AVG：500W/㎡，MAX：1000W/㎡ | ||||
| 12 | Screen Weight | <28kg/㎡ | ||||
| 13 | Protection grade | IP65 | ||||
| 14 | Lifespan | >100,000 hours | ||||
| 15 | Output Voltage | 5V power supply | ||||
| 16 | Input Voltage | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | ||||
| 17 | Working Condition | -10℃～+65℃，10%～95%RH | ||||
| 18 | Viewing distance | 4-250m | ||||
| 19 | Viewing angle | H 140°, V 140° | ||||
| 20 | Control System | NovaStar System, synchronize/asynchronous | ||||
Billboards:
Capture attention and clearly display advertisements or public announcements.
Building facades:
Enhance the visual appeal of buildings and showcase dynamic content.
Outdoor advertising displays:
Promote brands, products, or events in high-traffic areas.
Stadiums and arenas:
Display information, scores, or other visuals for spectators.
Outdoor events and festivals: Enhance the atmosphere with large-scale visuals and information displays.
