P2.5
XINTAI LED
8528590000
The Five-Sided Immersive Acoustic-Transparent Surround Sound LED Display is an advanced visual solution designed for next-generation immersive environments. It combines high-definition LED imaging with acoustic transparency, enabling a seamless integration of sound and visuals.
This acoustically transparent high-resolution LED panel is built for fixed installations, while also being widely used in concert stages, live events, exhibitions, retail experiences, and immersive projection projects.
Acoustic Transparency Design

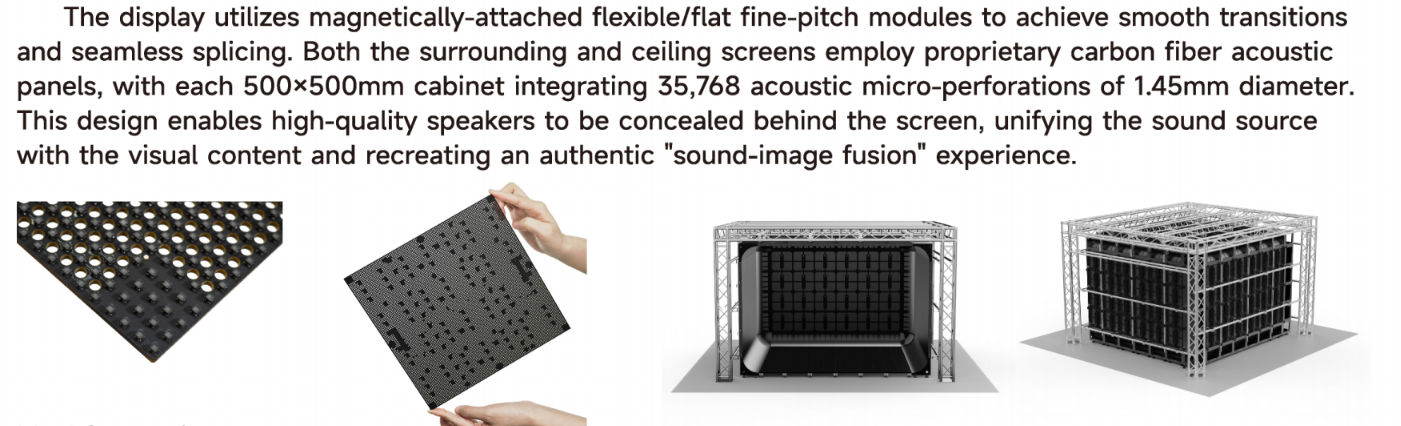

With 25% acoustic transparency, the LED panel allows sound to pass directly through the screen surface. This enables speakers to be installed behind the display without affecting audio clarity or directionality.
High Resolution Visual Performance
Featuring a 2.5mm pixel pitch, the display delivers sharp, detailed imagery suitable for close viewing distances and premium indoor environments.
Specifications | Four-Sided Acoustic-Transparent Surround LED Video Wall | LED Dance Floor |
Pixel Pitch | P2.5mm | P2.5mm |
LED Configuration | RGB SMD1010 | RGB SMD1515 |
Module Size | 250x250mm | 250x250mm |
Module Resolution | 100x100 Pixels | 100x100 Pixels |

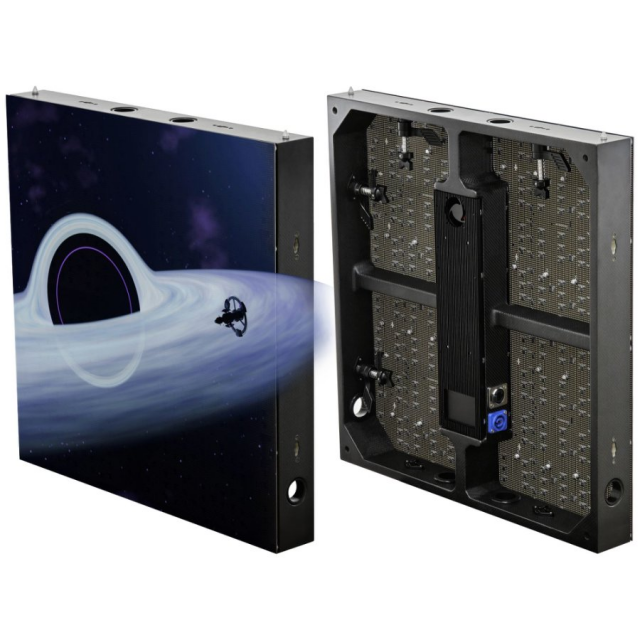

Cabinet Size | 500x500mm | 500x500mm |
Cabinet Resolution | 200x200 Pixels | 200x200 Pixels |
Screen Resolution | Front 4000x3000mm Resolution 1600x1200Pixels； | Floor 3000x3000mm |
Two Sides 3000x3000mm Resolution 1200x1200Pixels; | Resolution 1200x1200Pixels | |
Top 3000x3000mm Resolution 1200x1200Pixels | ||
Acoustic Transparency | ≈25% | 0 |
Sound System | Immersive surround sound creates a cinematic sense of presence, as if you were inside a movie theater. The spatially designed audio envelops the entire space, delivering an exceptional sense of realism and immersion from every direction. | |
Luminance | 800 - 1200 nits (Adjustable) | 800 - 1000 nits (Adjustable) |
Refresh Rate | ≥ 7680Hz | ≥ 7680Hz |
Brightness (nits) | ≥ 5000：1 | ≥ 5000：1 |
Color Gamut | DCI-P3 | DCI-P3 |
Surface Curvature | 5-Sided Seamless Curved Joint | Flat |
Cabinet Material | Iron/Carbon Fiber | Aluminum |
Cabinet Weight | 3.8KG | 12.2KG |
IP Rate | IP43 (Indoor) | IP55(Indoor) |
Weight-Bearing Performance | Standard | ≥ 1000kg/m² |
Surface Treatment | Acoustic Perforations + GOB Technology | GOB Technology |
Video Control System | NOVASTAR | |
・Product specifications may be changed or production discontinued without notice.・Accessories and optional items may have their specifications changed without prior notification. ・Some drawings are conceptual images; the final product shall be based solely on the actual manufactured item. | ||

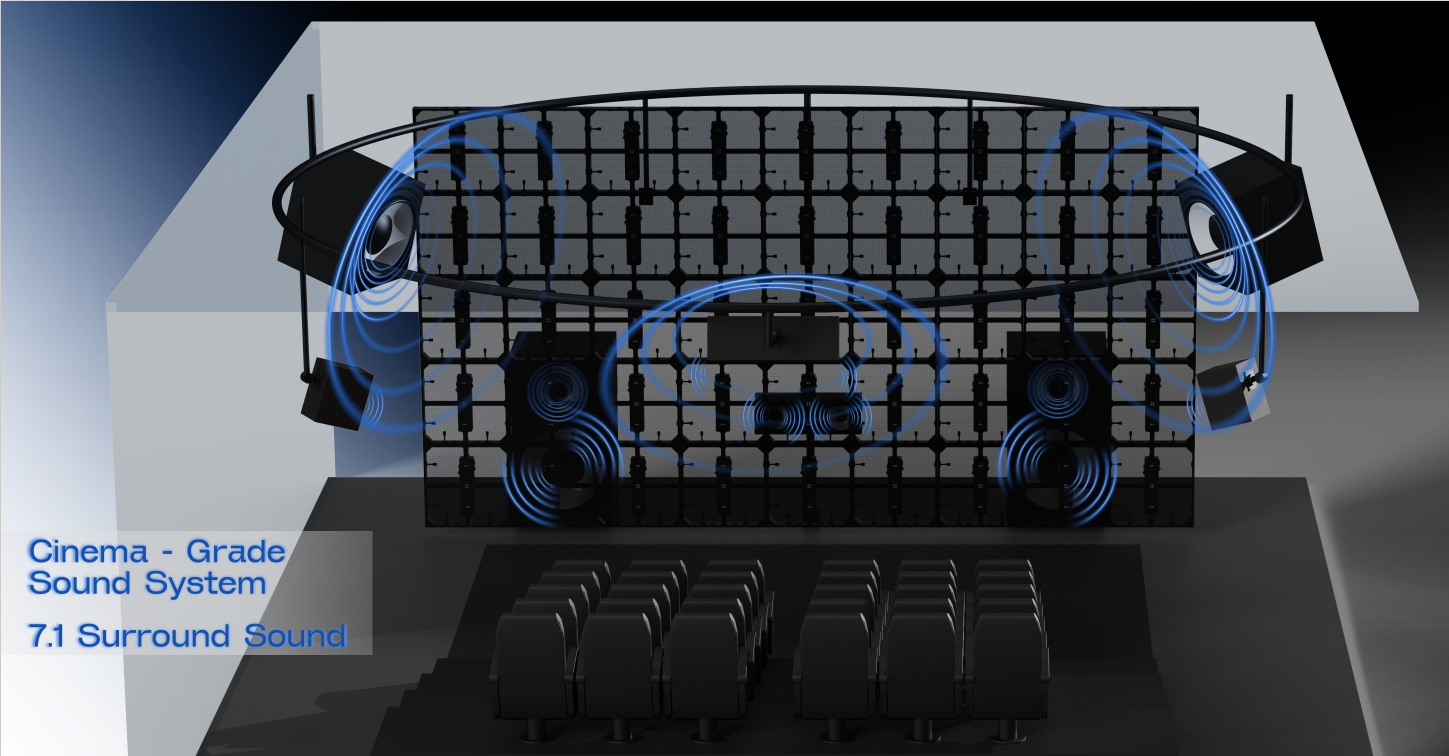

True Surround Sound Integration
Place your speakers directly behind the screen and let your audience experience sound exactly as intended—clear, natural, and spatially accurate.

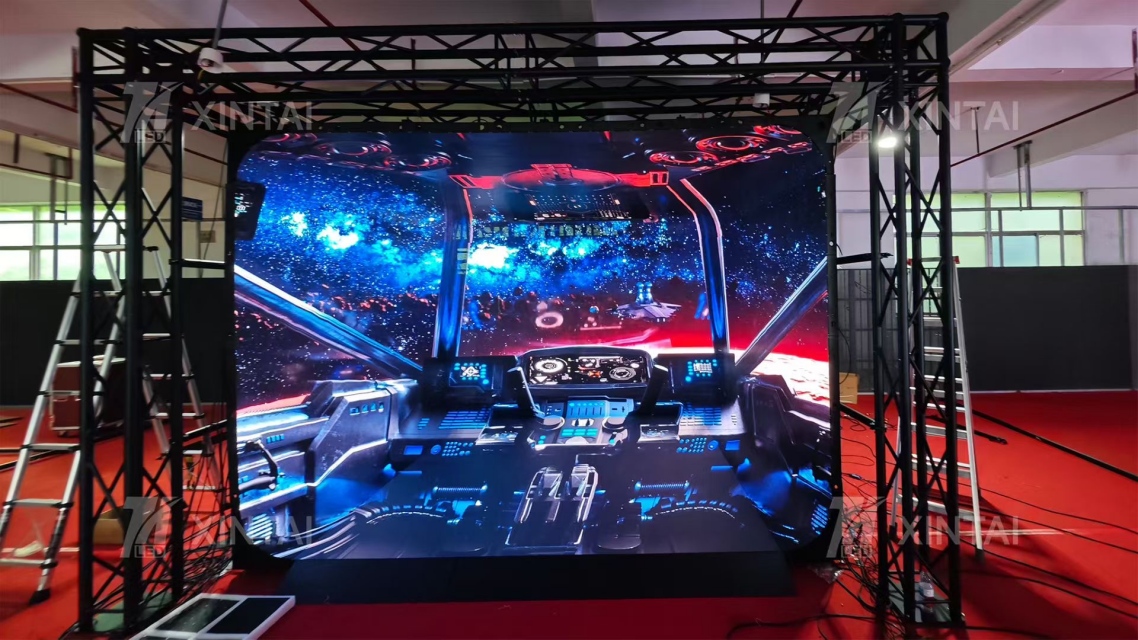

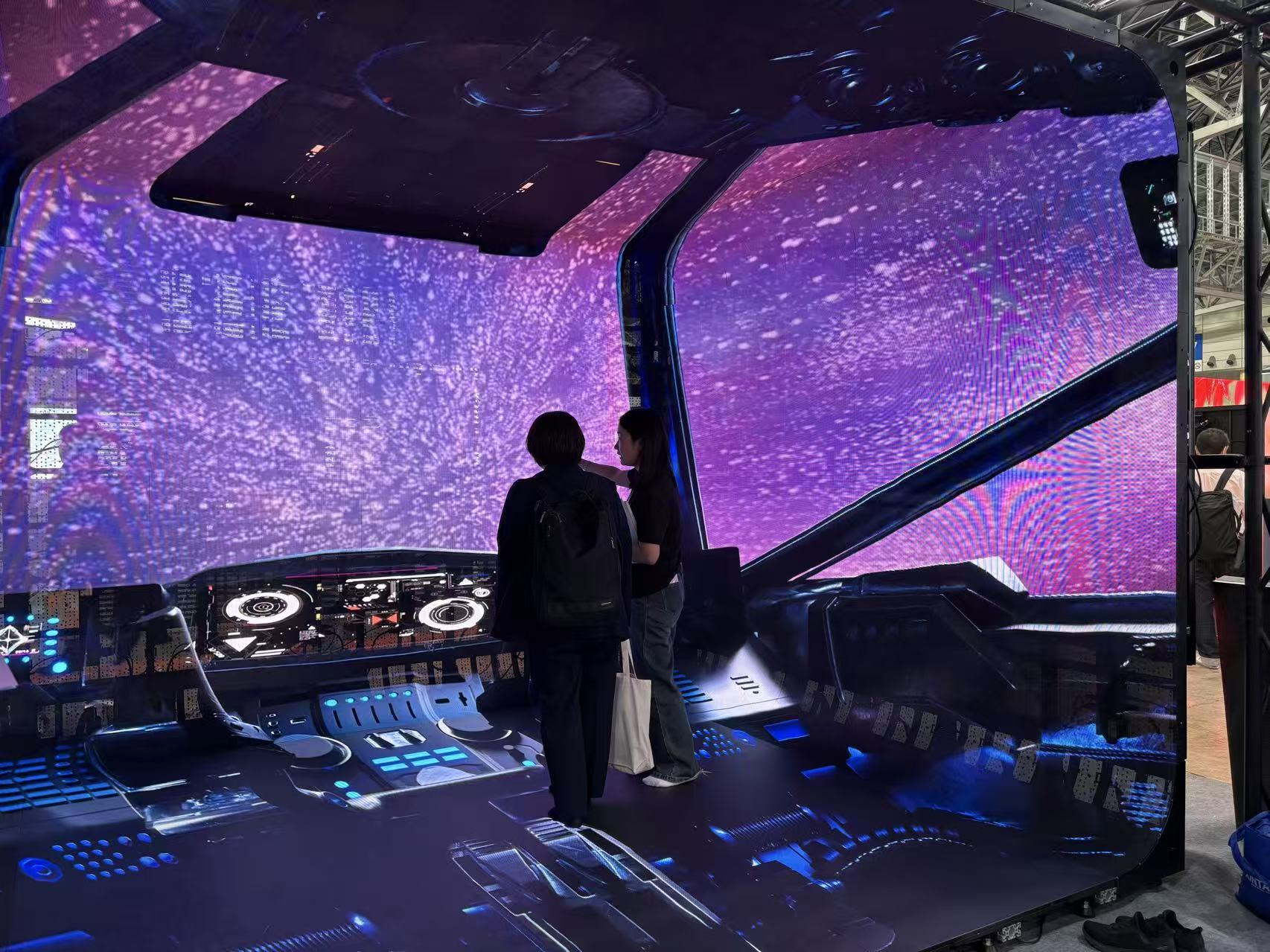

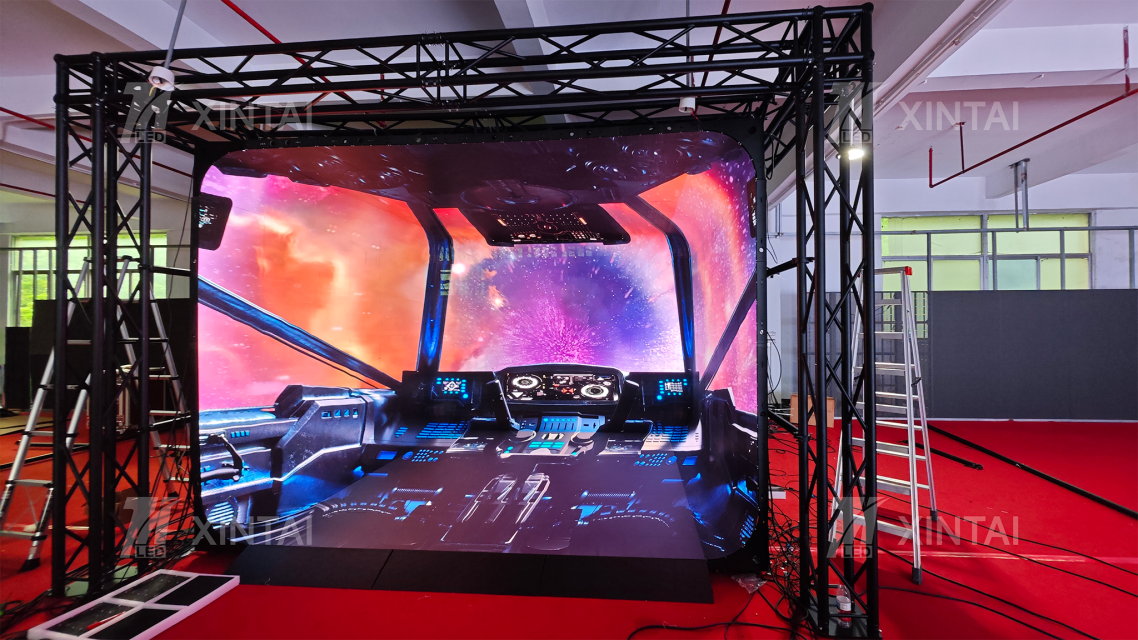

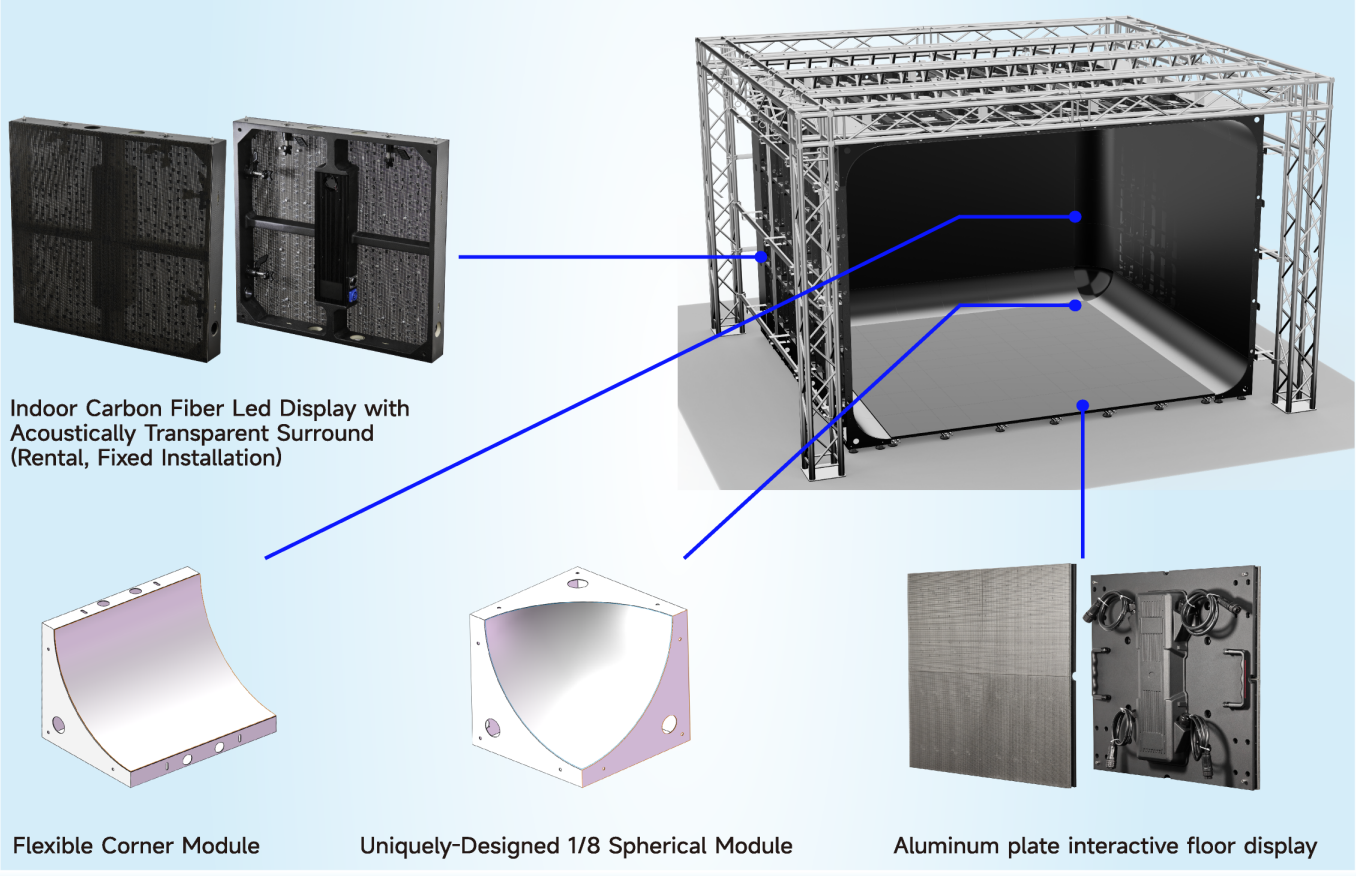

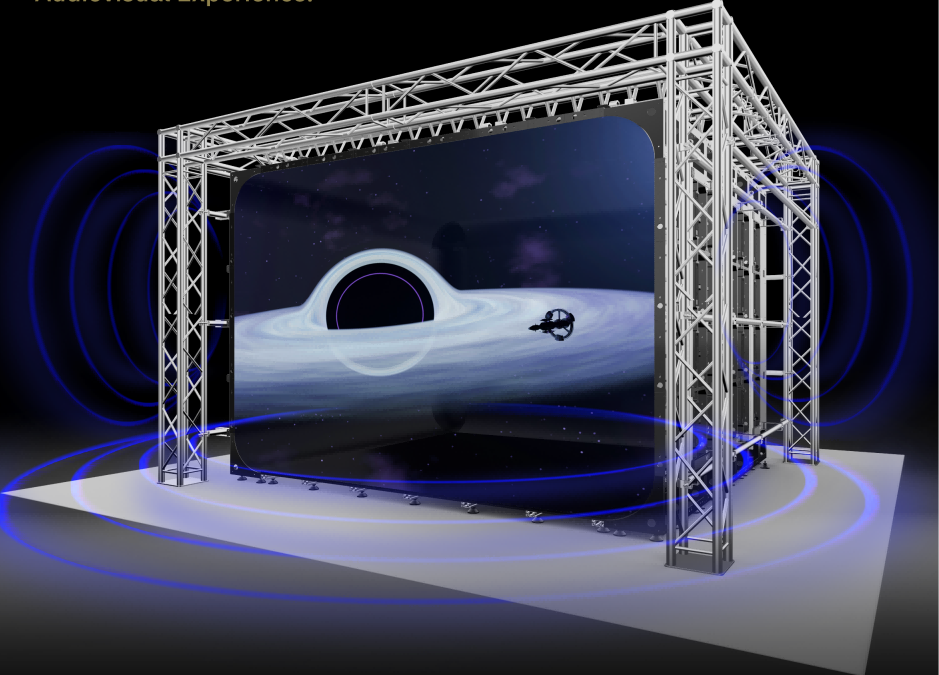

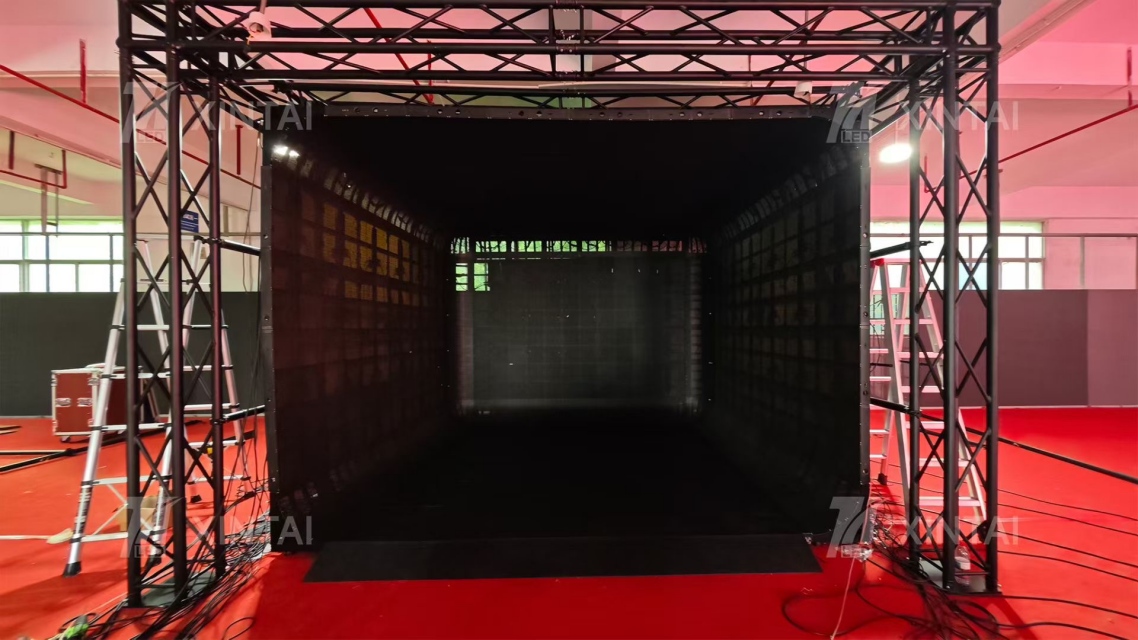

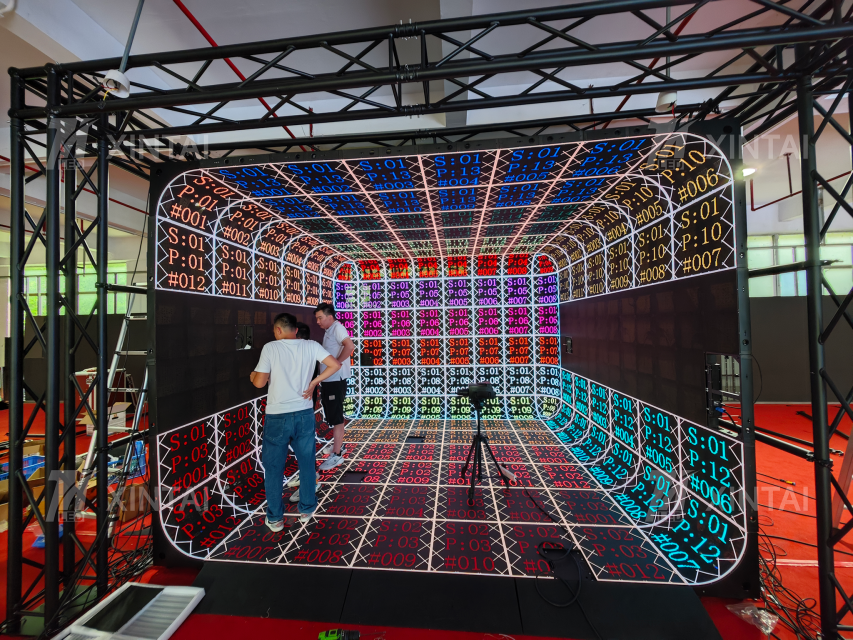

Five-Sided Immersive Structure
The unique five-sided design creates a fully immersive visual environment, surrounding the audience with dynamic content and enhancing engagement.

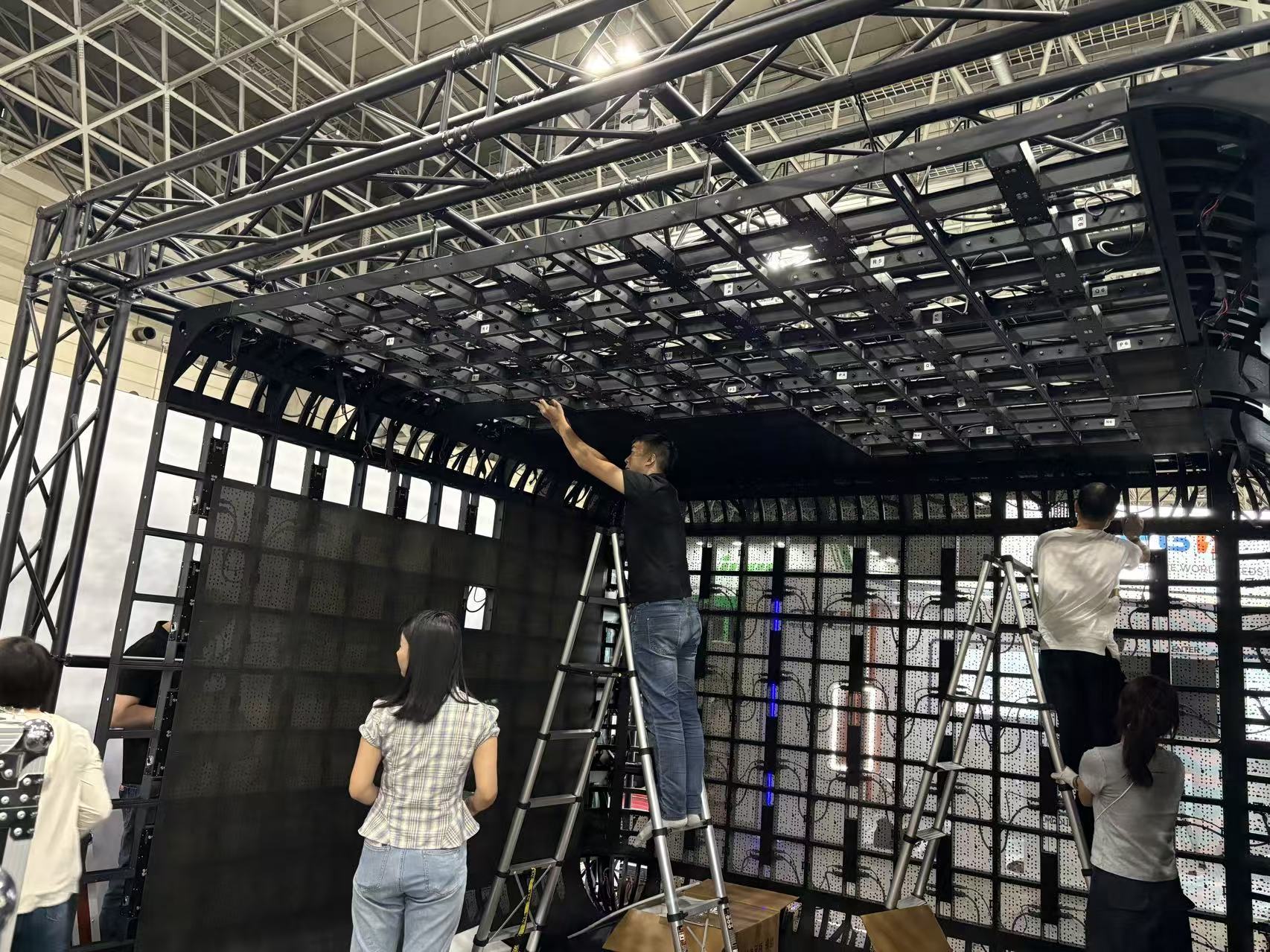

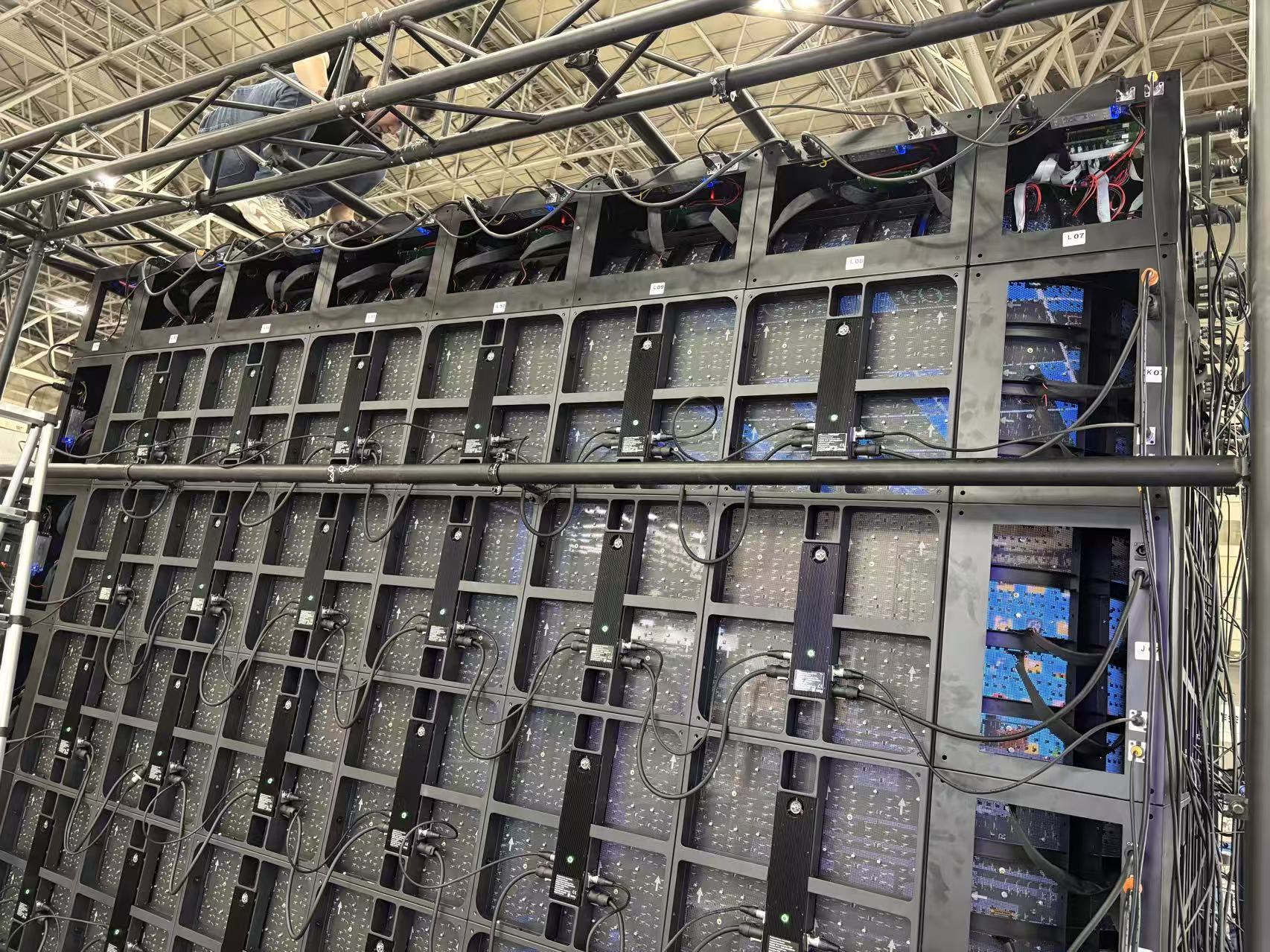

5. Designed for Fixed & Event Installations

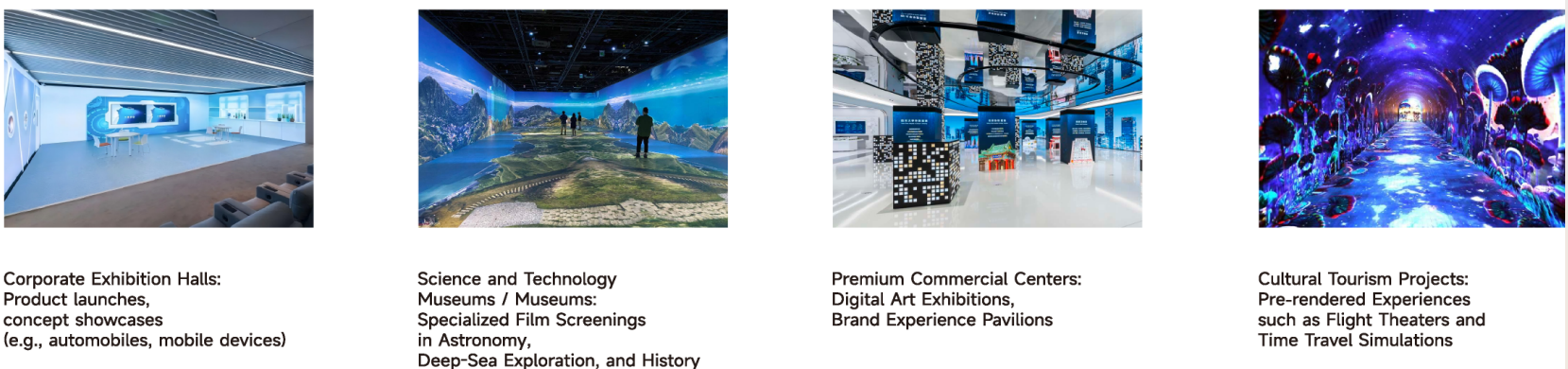

Ideal for permanent installations and temporary setups in concerts, exhibitions, brand events, museums, and XR immersive spaces.
