Immersive LED displays are a cutting-edge technology that combines traditional LED displays with other visual elements to create a more engaging and interactive experience for viewers.
High-Resolution LED Screens: Provide a clear and detailed picture.

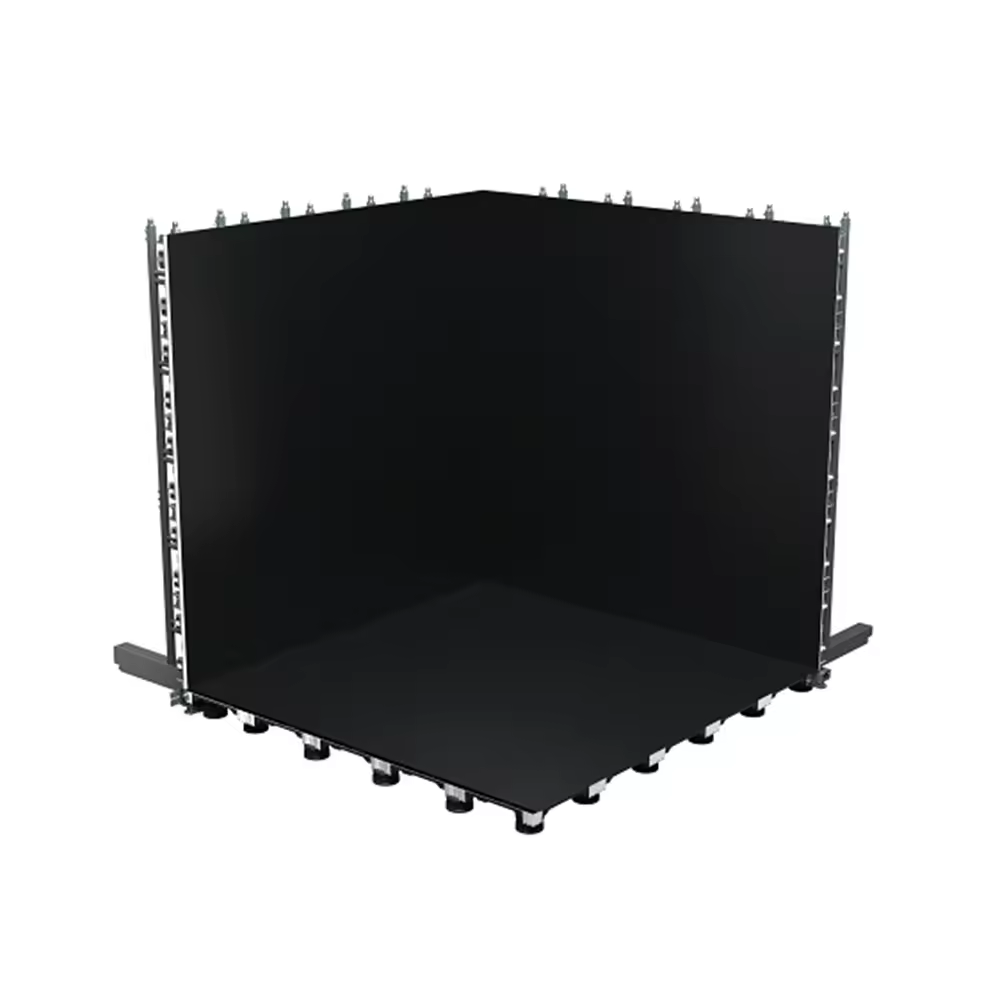

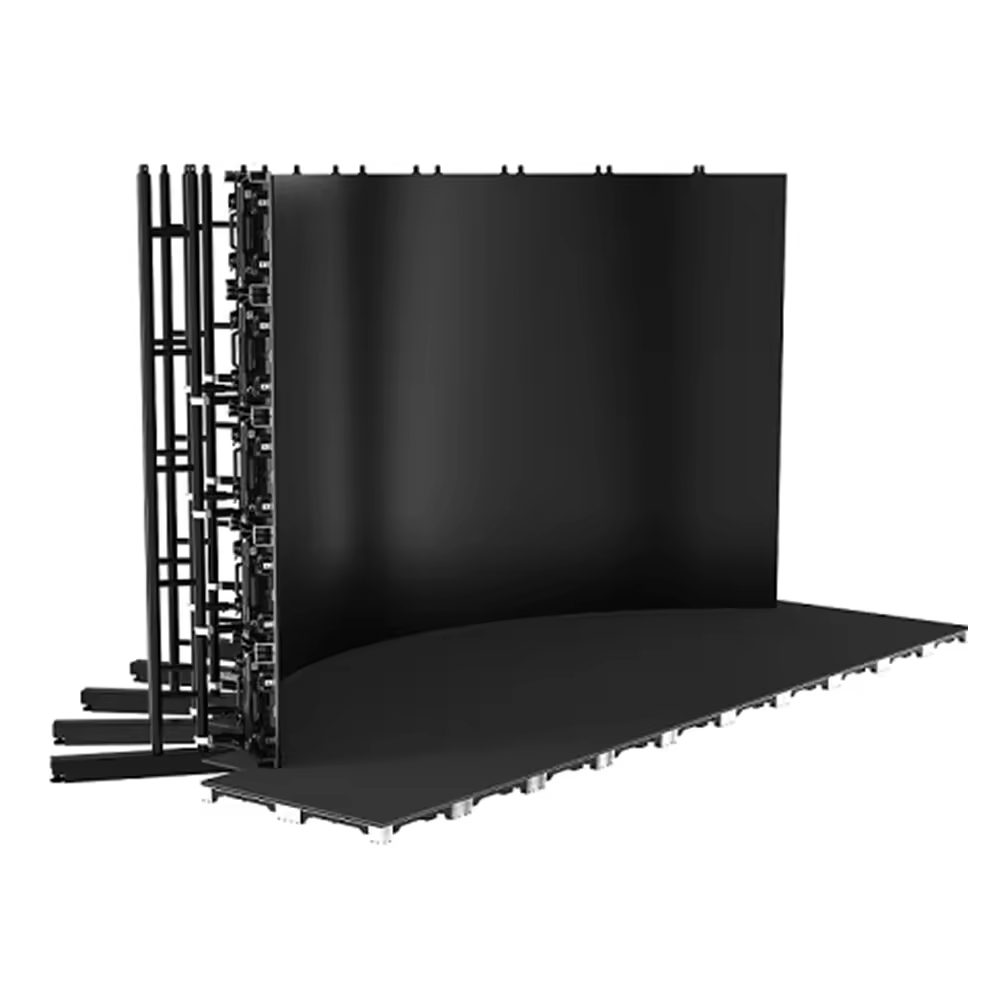

Curved or Spherical Displays: Create a wider field of view or even a 360-degree viewing experience.
3D Elements: Can incorporate holographic elements or other technologies to create a perception of depth.
Interactive Features: May include touchscreens, gesture recognition, or other ways for viewers to interact with the display content.
Applications:
Entertainment Venues: Create interactive experiences in museums, theme parks, or visitor centers.
Retail Stores: Showcase products in a more engaging way and allow customers to interact with information.
Trade Shows and Events: Make a lasting impression with a visually striking and interactive display.
Education and Training: Provide immersive learning experiences for students or trainees.
Architectural Design: Integrate into building designs for unique visual effects and information displays.
| Item | P1.5 | P1.8 | P2.5 | P2.5 | P2.6 |
| Pixel Pitch | 1.538mm | 1.86mm | 2.5mm | 2.5mm | 2.6mm |
| Pixel Density/㎡ | 422,754 | 289,050 | 160,000 | 160,000 | 147,474 |
| LED Configuration | SMD1212 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Brightness | 500nits | 500nits | 800nits | 800nits | 800nits |
| Power Consumption/㎡ | Max/Avg 650w/220w | Max/Avg 650w/220w | Max/Avg 650w/220w | Max/Avg 650w/220w | Max/Avg 650w/220w |
| Module Dimension | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm | 250mm x 250mm | 250mm x 250mm |
| Module Resolution | 208 x 104 | 172 x 86 | 128 x 64 | 100 x 100 | 96 x 96 |
| Screen Dimension | Customizable | Customizable | Customizable | Customizable | Customizable |
| Weight/㎡ | 28kg | 28kg | 28kg | 28kg | 28kg |
| Refresh Rate | 3840-7680Hz | 3840-7680Hz | 3840-7680Hz | 3840-7680Hz | 3840-7680Hz |
| Viewing Angle | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| IP Rate | IP31 | IP31 | IP31 | IP31 | IP31 |
| Input Voltage(AC) | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ |
| Operating Temperature | -20° ~ 60 ° | -20° ~ 60 ° | -20° ~ 60 ° | -20° ~ 60 ° | -20° ~ 60 ° |
| Grayscale(bit) | 16-18 | 16-18 | 16-18 | 16-18 | 16-18 |
| Lifespan(hrs) | >100,000(hrs) | >100,000(hrs) | >100,000(hrs) | >100,000(hrs) | >100,000(hrs) |
| Service Access | Front | Front | Front | Front | Front |
