Choosing an LED display is not simply about selecting the smallest pixel pitch or the highest brightness.

Different projects have different requirements. An LED display designed for an indoor showroom may have very different specifications from one used for an outdoor advertising screen, a rental stage, or a glass storefront.

Understanding the application environment and project requirements before selecting an LED display can help ensure better visual performance, easier installation, and more efficient long-term operation.

Here are several key factors to consider when choosing an LED display.

1. Where Will the LED Display Be Installed?

The installation environment is one of the first factors to consider.

LED displays are generally designed for indoor, outdoor, or special installation environments. Each environment has different requirements for brightness, protection, structure, and maintenance.

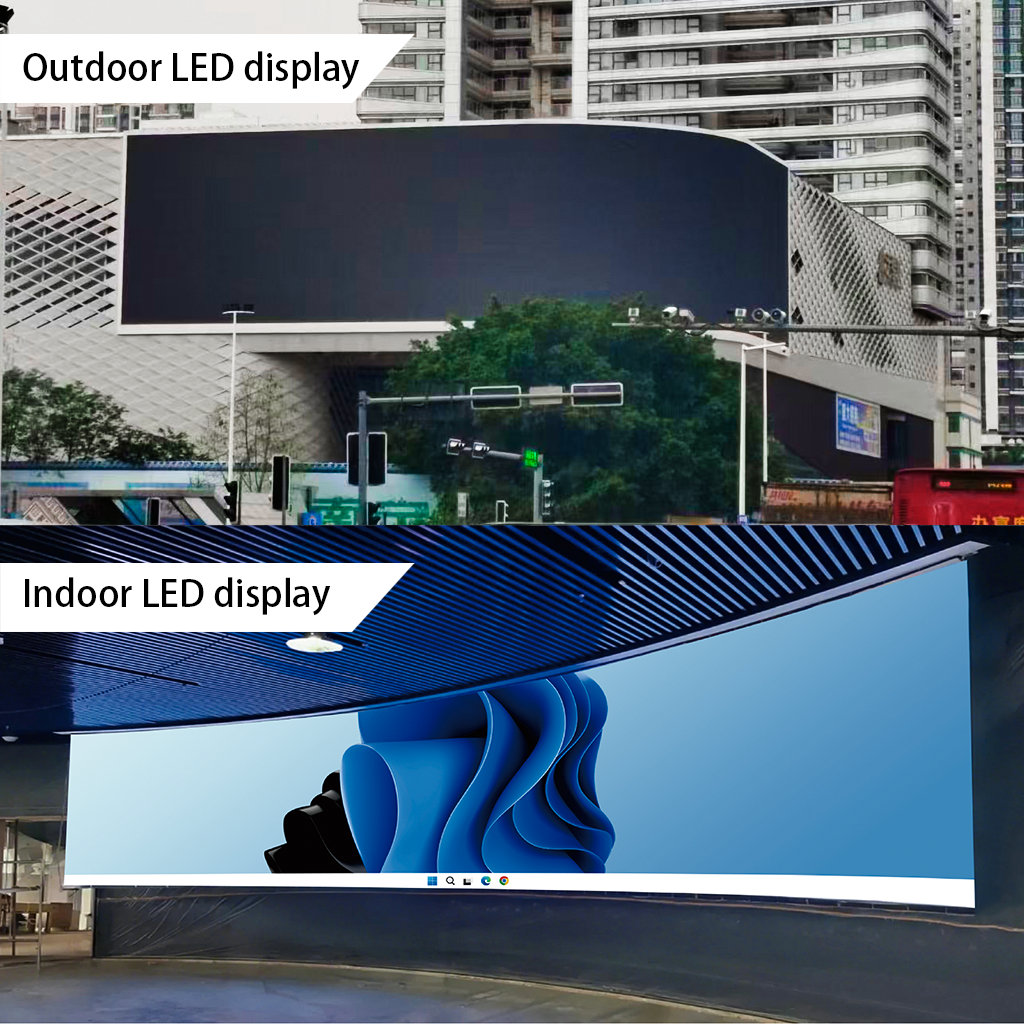

Indoor Applications

Indoor environments usually have controlled lighting conditions, so extremely high brightness is not always necessary.

Indoor LED displays are commonly used in:

• Meeting rooms

• Shopping malls

• Showrooms

• Museums

• Corporate spaces

• Control rooms

For these applications, image quality, pixel pitch, viewing distance, and installation space are often more important than maximum brightness.

Outdoor Applications

Outdoor LED displays need to deal with sunlight, rain, dust, and temperature changes.

Important specifications may include:

• High brightness

• Weather protection

• Stable operation

• Suitable cabinet structure

• Easy maintenance

For outdoor fixed installations, protection and long-term reliability should be considered together with display performance.

2. What Is the Viewing Distance?

Pixel pitch is another important factor when selecting an LED display.

Pixel pitch refers to the distance between the centers of two adjacent LED pixels. In general, a smaller pixel pitch provides higher pixel density and is more suitable for closer viewing distances.

For example:

• Fine-pitch LED: Suitable for close viewing and detailed images

• Medium pixel pitch: Suitable for general indoor and commercial applications

• Larger pixel pitch: Often suitable for larger screens viewed from greater distances

However, choosing the smallest possible pixel pitch is not always necessary.

If the audience is several meters away from the screen, a larger pixel pitch may already provide a satisfactory viewing experience.

Therefore, pixel pitch should be selected according to the actual viewing distance and application rather than simply choosing the smallest available option.

3. Is the LED Display Fixed or Frequently Moved?

Another important consideration is whether the display will remain in one location or be installed and removed regularly.

Fixed LED Display

Fixed LED displays are designed for long-term installation.

They are commonly used in:

• Commercial buildings

• Retail stores

• Corporate spaces

• Outdoor advertising

• Permanent exhibitions

For fixed installations, factors such as cabinet structure, maintenance method, protection, and long-term stability are particularly important.

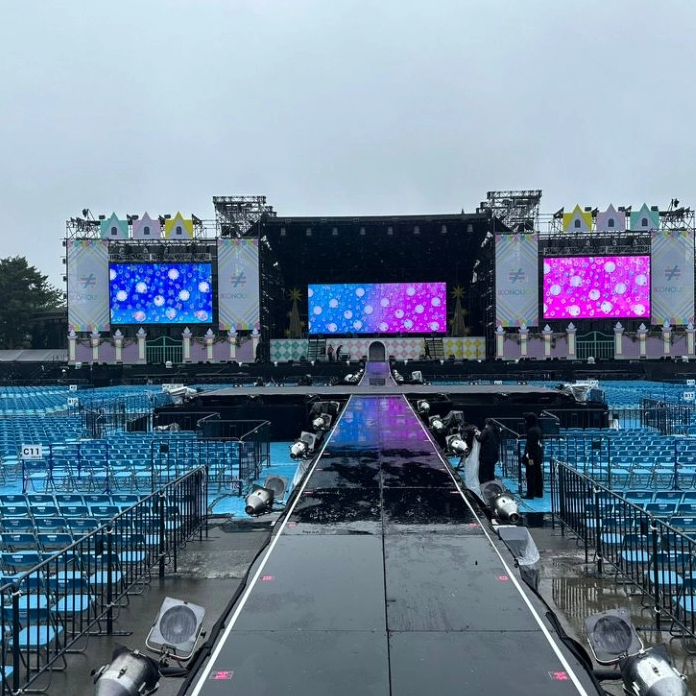

Rental LED Display

Rental LED displays are designed for applications where the screen needs to be transported and installed repeatedly.

Typical applications include:

• Concerts

• Events

• Conferences

• Stage productions

• Exhibitions

For rental applications, cabinet weight, quick installation, locking systems, and front/rear maintenance can become important considerations.

The best choice therefore depends not only on the display itself, but also on how frequently it will be installed, transported, and reused.

4. How Will the LED Display Be Maintained?

Maintenance is sometimes overlooked during the initial selection process, but it can have a significant impact on the long-term operation of an LED display.

There are two common maintenance methods.

Front Maintenance

https://youtube.com/shorts/kOMtdATvUZs?si=ELETQ0GUg6R44yXG

With front maintenance, modules and other components can be accessed from the front of the display.

This can be useful when there is limited space behind the screen.

Typical applications include:

• Wall-mounted indoor displays

• Retail installations

• Narrow spaces

• Displays installed directly against walls

Rear Maintenance

Rear maintenance provides access to components from the back of the display.

It can be suitable when sufficient maintenance space is available behind the screen.

When selecting an LED display, it is important to consider not only how the screen will be installed, but also how technicians will access it in the future.

A convenient maintenance design can help reduce downtime and simplify service work.

5. Does the Project Require a Transparent Display?

Some projects have a different requirement:

The LED display needs to show digital content without completely blocking the background.

This is where transparent LED displays can provide an alternative to conventional LED screens.

Transparent LED displays are often considered for:

• Glass storefronts

• Shopping malls

• Museums

• Exhibition spaces

• Showrooms

• Architectural installations

Because the display structure allows light and visual information to pass through, it can be integrated with the existing architecture instead of completely covering it.

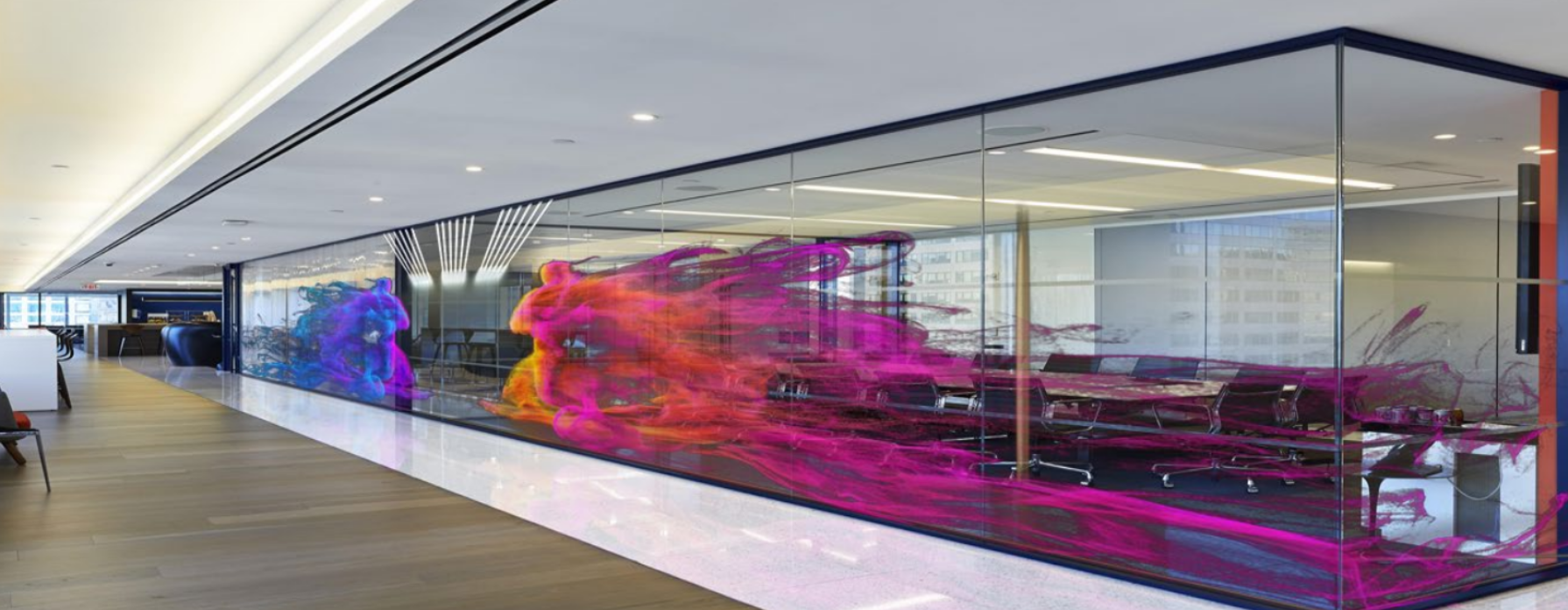

For applications that require a stronger floating or holographic visual effect, holographic LED displays can provide another creative option.

6. What Is the Required Image Quality?

Pixel pitch is not the only factor affecting image quality.

Depending on the application, other specifications may also need to be considered, such as:

• Refresh rate

• Brightness

• Grayscale performance

• Color consistency

• Viewing angle

For example, displays used for cameras, broadcasting, XR production, or professional events may require a higher refresh rate to reduce flicker and scanning artifacts on camera.

For general advertising or commercial applications, the priorities may be different.

This is why LED display specifications should always be considered together with the actual application.

7. Consider the Installation Space and Structure

The physical conditions of the installation site can also influence the choice of LED display.

Before selecting a product, it is useful to consider:

• Available installation space

• Wall or structural load

• Screen dimensions

• Maintenance access

• Installation method

• Transportation requirements

For projects where weight is an important consideration, lightweight LED solutions can help simplify transportation and installation.

For example, lightweight carbon fiber LED displays can be considered for projects where reducing structural load or installation time is important.

8. Choosing the Right LED Display

There is no single LED display that is suitable for every application.

A simple way to approach the selection is to first identify the main project requirements.

These are general guidelines. The final selection should be based on the actual installation environment, viewing distance, screen size, operating conditions, and maintenance requirements.

Conclusion

Choosing an LED display is a process of matching the display technology with the actual application.

Instead of focusing on a single specification, it is important to consider several factors together, including:

• Installation environment

• Viewing distance

• Pixel pitch

• Display type

• Maintenance method

• Image requirements

• Installation structure

• Long-term operating conditions

A well-matched LED display can provide not only better visual performance, but also a more practical installation and maintenance experience.

By understanding the requirements of the project before selecting the display, customers can make a more informed decision and choose a solution that fits both the application and the long-term needs of the project.
